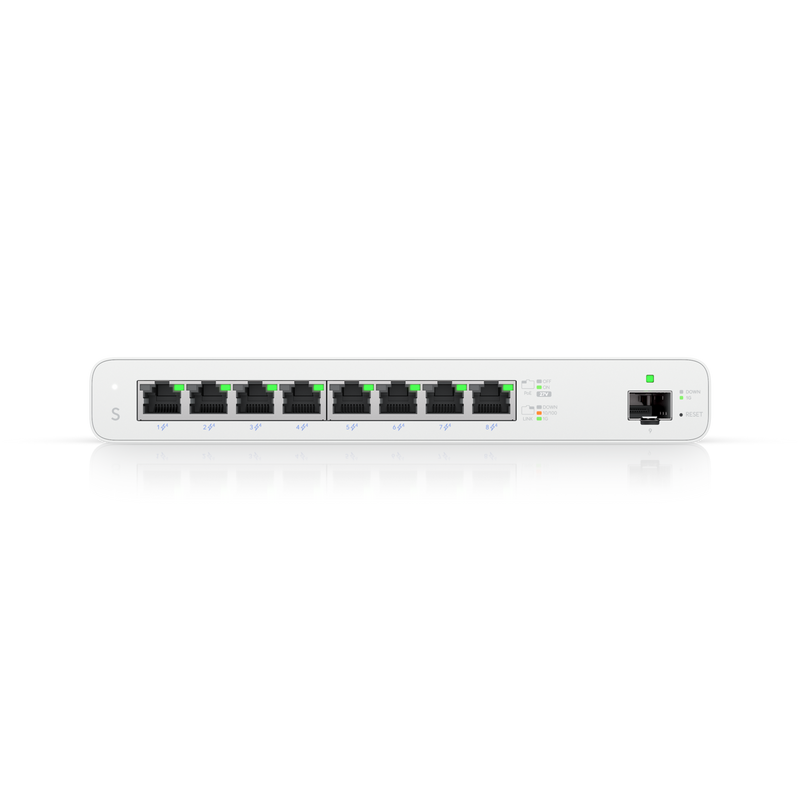

Ubiquiti UISP Switch | 8-Port Gigabit PoE & 1G SFP WISP Switch

The Ubiquiti UISP Switch is a compact, cost-effective Layer 2 PoE switch engineered specifically for MicroPoP (Micro Point of Presence) applications and wireless service provider deployments. Built to sit securely at the edge of your network—whether in an equipment cabinet or mounted on a wall—this switch bridges your primary distribution hardware with local wireless infrastructure.

With a total non-blocking switching throughput of 9 Gbps, it ensures consistent, full-speed data delivery to every connected device without processing delays.

Core Infrastructure Capabilities

• Dedicated Distribution Ports: Equipped with eight Gigabit RJ45 ports for high-speed local device connections and one 1G SFP port for long-distance fibre backhaul or uplink routing.

• Silent Fanless Design: Operates using passive thermal cooling. Because it features no moving parts, it can be deployed inside quiet office cabinets or confined enclosures without producing noise or drawing in excessive dust.

• Rapid Bluetooth Provisioning: Configured and deployed within minutes using the UISP Mobile app via a built-in Bluetooth BLE connection, allowing field engineers to provision the hardware directly from their phone.

• Centralised Network Visibility: Seamlessly integrates with the master Ubiquiti UISP management application. This platform enables you to monitor active links, trace network topologies, handle customer billing limits, and manage power cycling from a single remote interface.

Power Over Ethernet Distribution

The UISP-S-EU includes a dedicated 27V DC external power adapter that provides a 110W total PoE budget. This specific 27V output natively matches the electrical requirements of standard airMAX, LTU, and Wave sector radios, eliminating the need for space-consuming power injectors on your mounting panels.

Outdoor Deployment Tip: The internal polycarbonate chassis is designed for indoor, desktop, or wall-mount use. However, if you need to deploy this hardware directly onto an exposed wireless tower mast, it can be retrofitted inside the optional weatherproof UISP Box enclosure to shield it from harsh wind and driving rain.

Technical Specifications

• Dimensions: 210.4 mm x 95.0 mm x 29.0 mm

• Weight: 610 grams

• Chassis Material: Lightweight, durable polycarbonate

• Total Non-Blocking Throughput: 9 Gbps

• Switching Capacity: 18 Gbps

• Forwarding Rate: 13.392 Mpps

• Power Input: 27V DC, 4.4A External AC/DC Power Adapter (UK/EU Power Plug Included)

• Max Power Consumption: 8W (excluding downstream PoE output)

• ESD/EMP Protection: Air: ± 15 kV, Contact: ± 8 kV

• Operating Temperature Range: -10°C to 50°C

Box Contents

• Ubiquiti UISP Switch (UISP-S-EU Chassis)

• 27V DC, 4.4A External Power Adapter

• Wall Mounting Bracket Kit

• Screw and Anchor Set
