Ubiquiti UniFi 6 Long-Range Access Point (U6-LR)

The Ubiquiti UniFi U6-LR is an enterprise-tier, high-gain wireless access point engineered to broadcast expansive, multi-gigabit Wi-Fi 6 coverage across vast physical footprints. Designed specifically to maximize coverage performance in architecturally challenging or sprawling environments—such as wide open-plan offices, long industrial warehouses, school campus corridors, and high-ceiling retail hubs—this unit pairs structural signal penetration with next-generation processing stability.

With a total combined aggregate over-the-air data throughput rate of up to 3.0 Gbps, the U6-LR maintains stable, long-distance link speeds for 300+ active device sessions concurrently.

High-Gain Antennas & Broad Spatial Mapping

The U6-LR stands apart from standard ceiling access points due to its unique internal antenna orientation and multi-stream capability, engineered to eliminate localized signal dropouts:

• Down-Tilted Antenna Topology: Built with a specialized sideways, down-tilted physical antenna layout. This custom orientation wide-casts a broader, uniform horizontal coverage envelope, making it highly effective at providing stable signals across rooms with wide floor plans or high structural rafters.

• 8-Stream Spatial Capacity: Houses a robust 8-stream spatial layout utilizing an advanced 4x4 multi-user MIMO (MU-MIMO) matrix alongside Orthogonal Frequency-Division Multiple Access (OFDMA) processing blocks. This large stream configuration allows the AP to process massive simultaneous upload and download requests across high device populations without packet stalling.

• Long-Range Signal Penetration: Upgraded radio frequency filters and higher transmission power outputs allow this unit to punch a clean wireless signal through dense drywall and structural materials, covering areas up to 185 m² (2,000 ft²).

Throughput & Stream Distribution Matrix

The eight individual spatial streams split aggregate network bandwidth across two high-power radio systems:

Semi-Outdoor Enclosure & PoE+ Power Parameters

• IP54 Weatherproof Barrier: Enclosed within a heavy-duty, industrially sealed polycarbonate shell. This dust-resistant and splashproof certification allows the U6-LR to be safely deployed in covered, sheltered outdoor areas—such as open-air restaurant verandas, stockrooms, outdoor entryways, or covered shipping bays.

• PoE+ Power Configuration: Operates cleanly on standard 48V active Power over Ethernet Plus (802.3at PoE+) feeds down your incoming Ethernet line. The hardware has a maximum power consumption rating of 18.5 Watts under high multi-user transaction spikes.

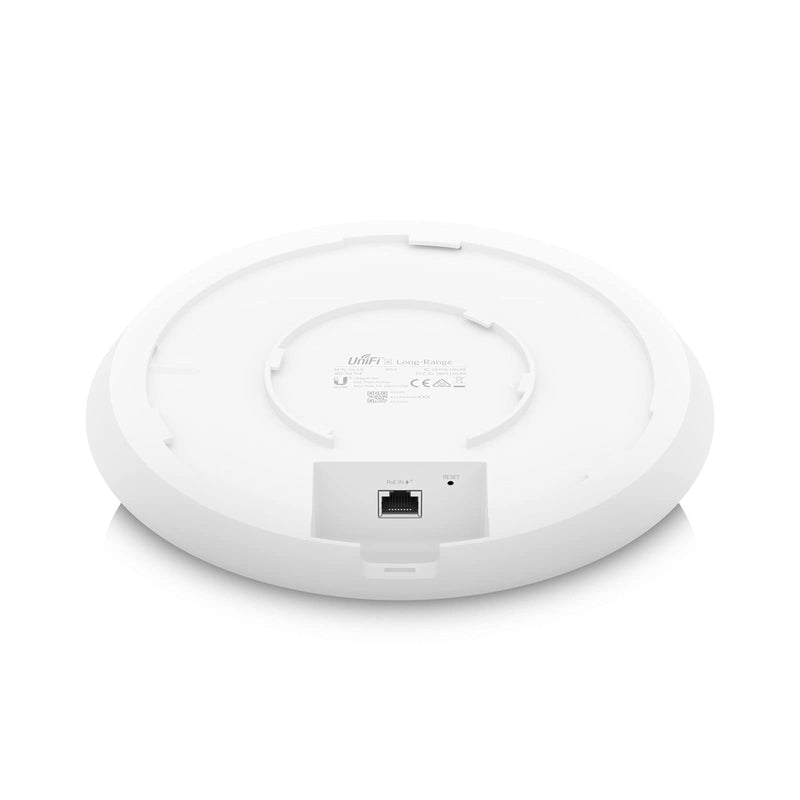

Physical Replacement Note: The U6-LR uses Ubiquiti's larger physical format mounting layout (Ø 220 mm). It shares identical physical dimensions and twist-and-lock baseplate matching paths with the older AC-PRO, AC-HD, and U6-Enterprise chassis designs, enabling field engineers to swap out legacy units in seconds without modification. Please note that a PoE power injector is not included in this standalone commercial pack and must be supplied via a PoE+ switch.

Technical Specifications

• Dimensions: Ø 220.0 mm x 48.0 mm

• Weight: 800 grams (930 grams with the structural steel bracket attached)

• Networking Uplink: 1 x 10/100/1000 Mbps RJ45 Port

• Processor Framework: Dual-Core Cortex A53 running at 1.35 GHz

• System Memory: 512 MB

• Wireless Security Integration: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 support)

• Management Interface: Native integration within the UniFi Network Application

• Ambient Operating Temperature: -30°C to 60°C

Box Contents

• Ubiquiti UniFi 6 Long-Range Access Point

• SUS304 Stainless Steel Ceiling/Wall Mounting Base Plate

• Ceiling Tile Grid Backing Support Reinforcement Plate

• Rubber Cable Feed Plug

• Plasterboard Wall Plugs, Anchors, and Complete Fixing Screw Kit
