Ubiquiti UniFi U6 Enterprise | Tri-Band Wi-Fi 6E Access Point

Ubiquiti UniFi U6 Enterprise Access Point (U6-ENTERPRISE)

The Ubiquiti UniFi U6 Enterprise is a flagship, ceiling-mounted tri-band access point purpose-built to deliver multi-gigabit wireless networking to high-density commercial environments. Engineered for locations with massive wireless client saturation—such as corporate office floors, university lecture theatres, exhibition halls, and large-scale retail spaces—this unit utilizes next-generation Wi-Fi 6E technology.

By leveraging the uncrowded, wide-channel 6 GHz wireless band alongside legacy frequencies, the U6 Enterprise bypasses localized signal congestion to ensure high-capacity data delivery to over 600+ active client devices concurrently.

High-Capacity 10-Stream Wireless Architecture

• Tri-Band Spectrum Utilization: Operates across the 2.4 GHz, 5 GHz, and 6 GHz frequencies simultaneously, achieving an aggregate over-the-air data throughput rate of 10.2 Gbps.

• 10 Spatial Streams Matrix: Features an advanced 4x4 multi-user MIMO (MU-MIMO) structure across both its 5 GHz and 6 GHz radio arrays, providing wide, parallel pipelines that prevent multi-user latency dropouts.

• Full 160 MHz Channel Width: Unlocks the maximum channel size available on the 5 GHz and 6 GHz spectrums. This wide channel layout is ideal for processing large local file backups, high-bitrate media production streaming, and demanding server syncs.

• 2.5 GbE Wired Uplink Baseline: Equipped with a high-speed 2.5 Gigabit Ethernet RJ45 copper interface. This multi-gigabit backhaul prevents the physical wired connection from throttling the massive aggregate performance of the wireless radios.

Throughput & Stream Allocation Breakdown

The U6 Enterprise splits its spatial streams across three independent radio chips to maintain performance stability:

Physical Design, Power & Deployment Details

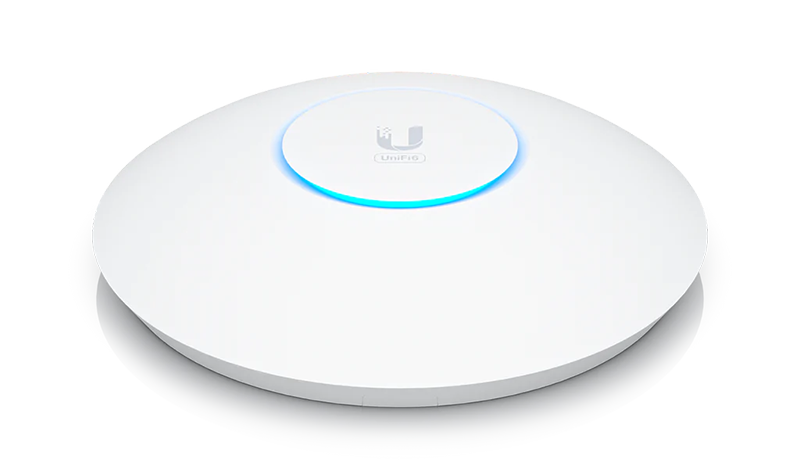

• Robust Hybrid Enclosure: Designed with a premium polycarbonate top shell and a heavy-duty cast aluminum bottom housing, optimized for superior passive thermal heat dissipation under continuous heavy traffic loads.

• PoE+ Operational Window: Powered exclusively via standard 802.3at PoE+ (44–57V DC) down your incoming network line. The hardware features a maximum power consumption of 22 Watts.

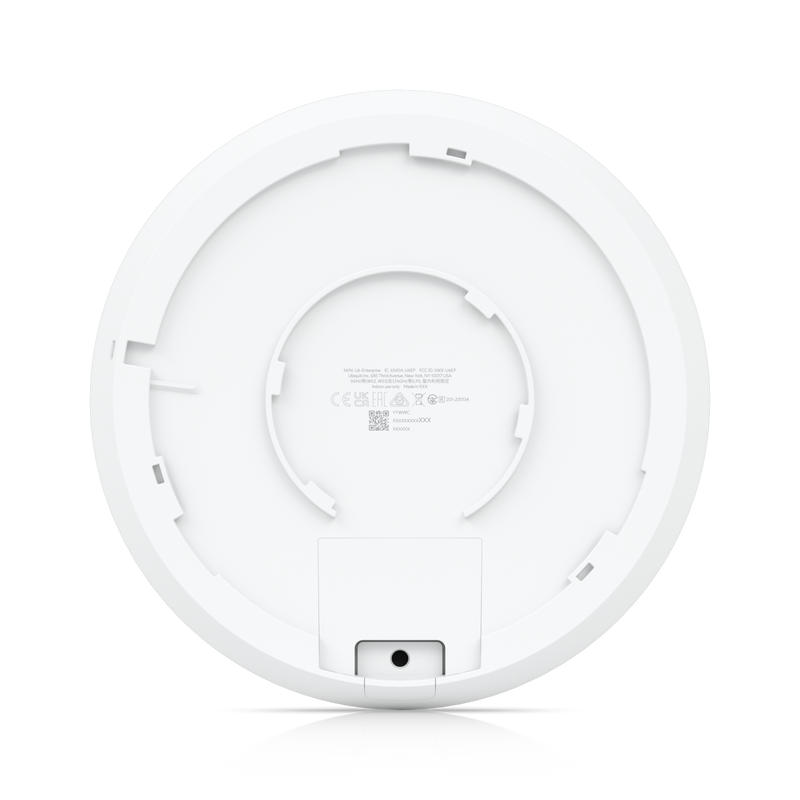

• Physical Footprint Alignment: Please note that the U6 Enterprise utilizes the larger standard mounting format footprint (Ø 220 mm), sharing identical chassis dimensions and mounting bracket placement with the older U6-Long Range and AC-HD access points. This allows for a simple twist-and-lock upgrade on existing deployment points.

Technical Specifications

• Dimensions: Ø 220.0 mm x 48.1 mm

• Weight: 960 grams (1.09 kg with the stainless steel mounting plate attached)

• Network Interface: 1 x 1/2.5 GbE RJ45 Port

• Management Interfaces: Ethernet, Bluetooth BLE (for rapid mobile provisioning)

• Wireless Security Standards: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 Personal and Enterprise)

• Advanced Networking: 802.1Q VLAN Tagging, Per-User Rate Limiting, Guest Traffic Isolation

• Max. TX Power Output: 2.4 GHz: 22 dBm | 5 GHz & 6 GHz: 26 dBm

• Operating Temperature Thresholds: -30°C to 60°C

Box Contents

• Ubiquiti UniFi U6 Enterprise Access Point

• SUS304 Stainless Steel Ceiling/Wall Mounting Plate

• SGCC Steel Backing Reinforcement Bracket (for ceiling tile grid installations)

• Complete Anchor, Screw, and Bolt Installation Fastener Pack
