Ubiquiti UniFi U6+ Access Point | Compact Dual-Band Wi-Fi 6 AP

Ubiquiti UniFi U6+ Access Point (U6+)

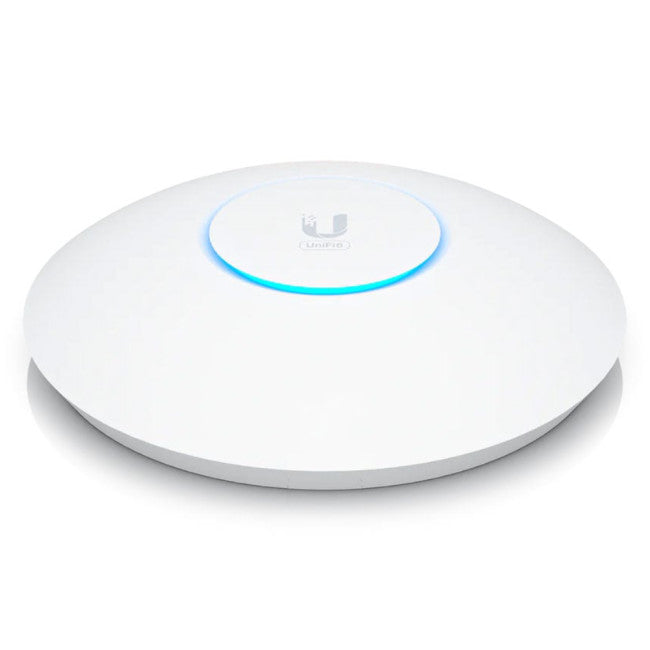

The Ubiquiti UniFi U6+ is a compact, ceiling-mounted dual-band access point designed specifically for small to medium-sized businesses, retail units, and home labs looking for an efficient Wi-Fi 6 deployment. Positioned as the direct generational successor to the popular U6-Lite, the U6+ offers significantly boosted data processing speeds and upgraded performance without expanding the hardware's physical footprint.

With a total aggregate over-the-air throughput rate of 3.0 Gbps, this unit provides clear, dependable coverage across areas up to 140 m² (1,500 ft²) and supports 300+ active client devices concurrently.

Generational Performance Upgrades

The primary reason to deploy the U6+ over legacy entry-level access points is its architectural upgrade across both operational frequency bands. While older hardware models restricted Wi-Fi 6 protocols strictly to the 5 GHz band, the U6+ implements full Wi-Fi 6 (802.11ax) processing across both frequencies simultaneously:

• True Dual-Band Wi-Fi 6 Processing: Enhances the performance of legacy IoT hardware and smart devices operating on the 2.4 GHz band, alongside modern high-speed mobile clients on the 5 GHz band.

• 160 MHz Channel Bandwidth Support: Opens up wide frequency channels on the 5 GHz band, effectively doubling transmission speeds for heavy data transfers, local server backups, and high-bitrate video streaming.

• 4 Spatial Streams Matrix: Utilizes a balanced 2x2 multi-user MIMO (MU-MIMO) layout across both internal radio blocks to ensure data packets move fluidly to multiple connected devices at the same time.

Throughput Allocation Matrix

The four spatial streams divide aggregate network bandwidth down the following lines to maximize local performance:

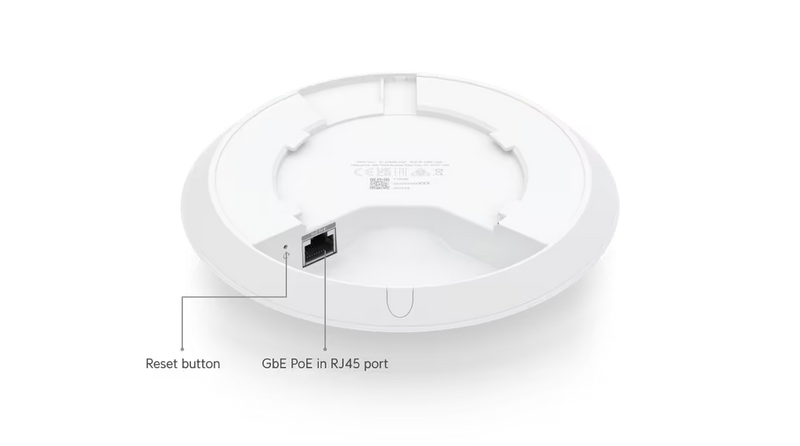

Power & Backward Compatibility Note: The U6+ is powered using standard 44–57V DC Power over Ethernet (PoE) fed into its single Gigabit RJ45 port. With a highly optimized maximum power consumption of just 9 Watts, it can run cleanly off entry-level PoE switches. Conveniently, the U6+ uses the exact same physical mounting dimensions as the older U6-Lite and nanoHD access points, allowing you to twist-lock it onto existing mounting brackets without drilling new holes.

Technical Specifications

• Dimensions: Ø 160.0 mm x 33.0 mm

• Weight: 338 grams (413 grams with mounting plate attached)

• Enclosure Materials: Polycarbonate top cover with a robust aluminum base plate

• Networking Interface: 1 x Gigabit Ethernet (GbE) RJ45 Port

• Maximum Power Consumption: 9W

• Max. TX Power Output: 23 dBm on both 2.4 GHz and 5 GHz radios

• Wireless Security Encryption: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 support)

• BSSID Configurations: Up to 8 separate virtual SSIDs per radio interface

• Operating Temperatures: -30°C to 60°C

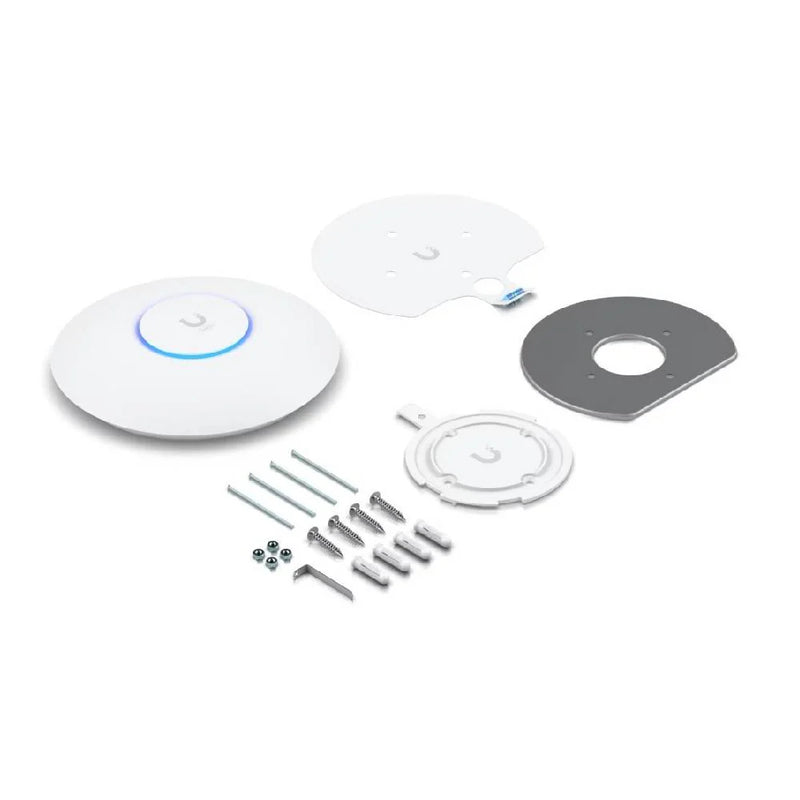

Box Contents

• Ubiquiti UniFi U6+ Access Point Chassis

• ABS Plastic Wall/Ceiling Mounting Plate

• SGCC Steel Backing Reinforcement Bracket

• Plasterboard Anchors, Screws, and Nut Assembly Kit
