PAX A35 Smart Android Integrated PIN Pad | Part: A35-0BW-A6-0U-MG1

Product Overview

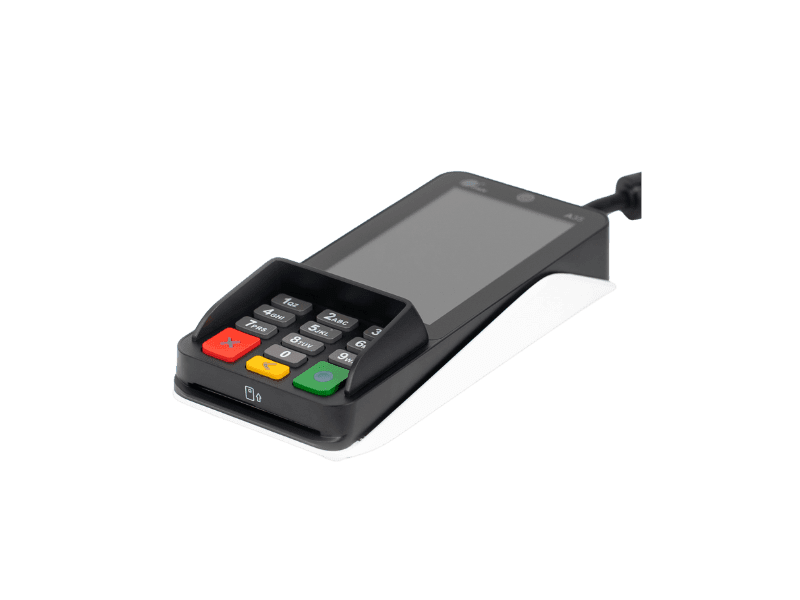

The PAX A35 (Manufacturer Part Number: A35-0BW-A6-0U-MG1) is a compact, fixed counter-top Android PIN pad engineered for busy retail points of sale, supermarket lanes, and hospitality till desks. Designed to sit permanently at the checkout, this device connects directly to your Electronic Cash Register (ECR) or Electronic Point of Sale (EPOS) system to handle customer payments.

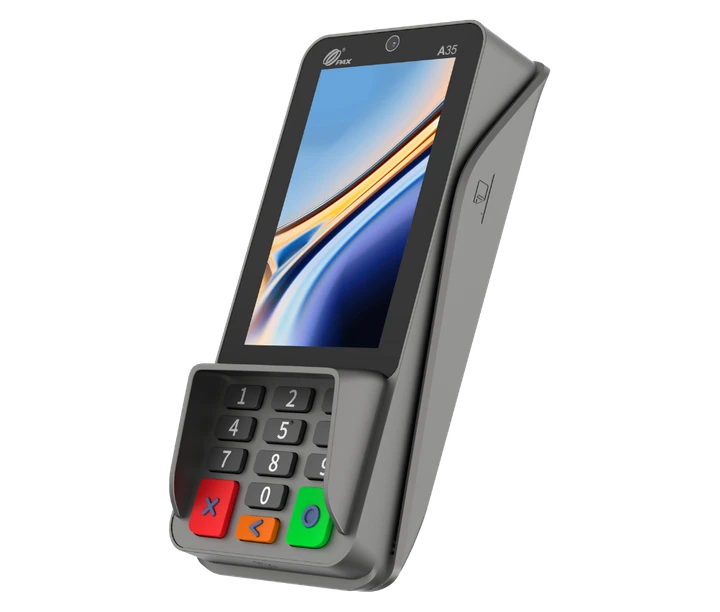

Operating on the secure PayDroid platform (built on Android 10), this specific terminal features a 4-inch colour touchscreen, a traditional tactile 13-key physical keypad, and a metallic grey casing.

Key Features

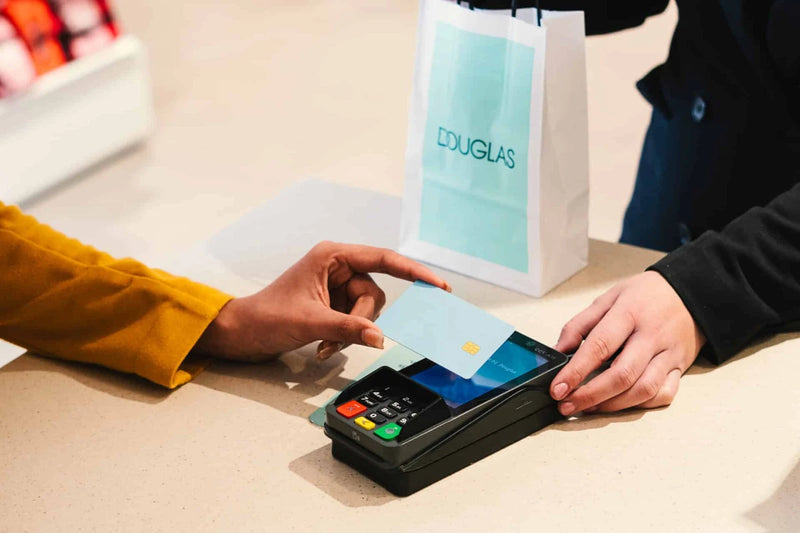

• Comprehensive Payment Methods: Fully accepts Chip & PIN, contactless card taps, and traditional magnetic stripe swipes. It supports smartphone wallets including Apple Pay, Google Pay, and Samsung Pay.

• Upgraded Wireless & Wired Connectivity: Unlike entry-level configurations, the 0BW-A6-0U-MG1 variant includes dual-band Wi-Fi (2.4GHz/5GHz) and Bluetooth 4.2 alongside standard high-speed Ethernet and USB options.

• Hybrid Interface Design: Combines a responsive capacitive touchscreen for digital signatures and on-screen selections with physical, backlit keys for fast, accurate PIN entry.

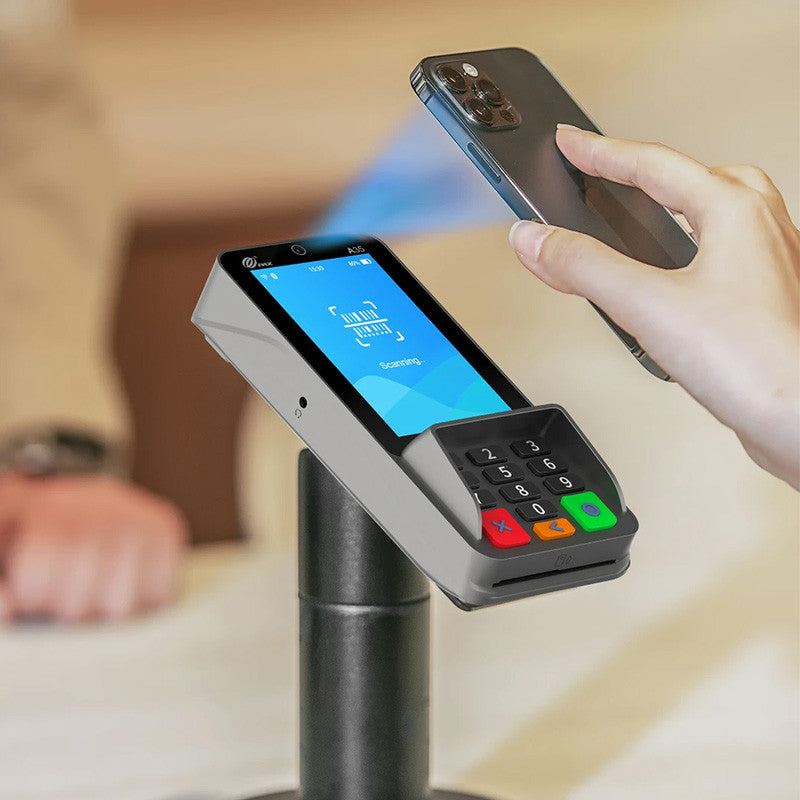

• Front-Facing Camera: Built with an integrated front-facing camera used for scanning customer-presented 1D/2D QR codes, digital coupons, and mobile loyalty vouchers directly from smartphone screens.

• Power over Ethernet (PoE): Supports power delivery straight through a network cable via an external PoE splitter, minimizing cord clutter around the cash register.

Technical Specifications

Why Choose the A35-0BW-A6-0U-MG1 Configuration?

Selecting the correct model suffix is vital for multi-lane retailers. The A35-0BW-A6-0U-MG1 bridges the gap between old-fashioned tethered PIN pads and modern network environments.

Flexible Network Options

While standard units require hardwired LAN cables to function, this variant features onboard Wi-Fi. If your primary Ethernet network goes down, or if you need to reposition your till counters away from physical wall sockets, the terminal keeps processing payments wirelessly without requiring new building infrastructure.

PCI PTS 6.x Security Standard

This PIN pad is manufactured to comply with stringent PCI PTS 6.x security guidelines. It features advanced physical tamper-detection alongside hardware encryption to safeguard customer PIN entries and card data at the physical point of sale.

Interactive Customer Display

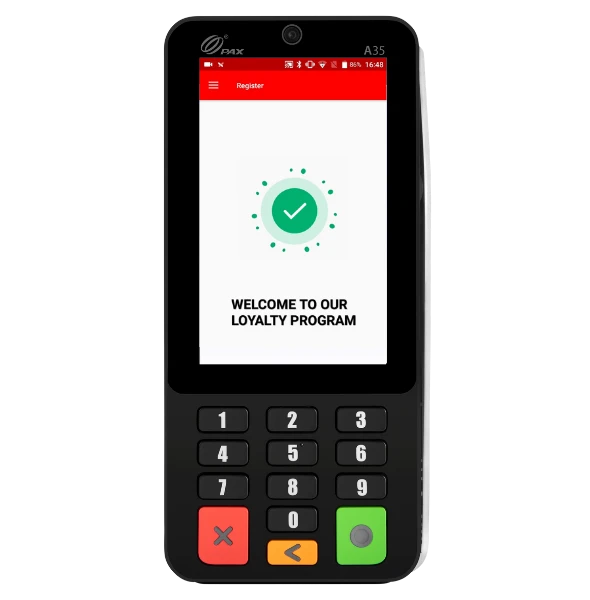

The 4-inch screen can be configured via management apps like MAXSTORE to show customer-facing promotional material, digital receipts, or targeted advertisements directly during the checkout process.

What is in the Box?

1. PAX A35 Smart PIN Pad Terminal (A35-0BW-A6-0U-MG1)

2. Multi-Purpose Connection Interface Cable

3. UK 3-Pin Mains Power Supply Adapter

4. Removable Back Plate with Fixation Screws

5. User Setup Guide

Frequently Asked Questions (FAQs)

Does this terminal print physical till receipts?

No. The PAX A35 is a dedicated, integrated counter-top PIN pad. It does not contain an internal thermal printer roll. It passes transactional data back to your primary till system, which then prints the customer receipt through your existing counter printer.

Can this PIN pad run on its own without a main till?

No, this is a semi-integrated device rather than a mobile, standalone card machine. It is designed to plug directly into an established electronic point-of-sale terminal or payment hub software to receive transaction amounts.

How does the Wi-Fi feature help in a retail setup?

The built-in Wi-Fi allows the unit to communicate with your local in-store server or cloud payment gateway without needing an Ethernet network cable running across the desk. This simplifies checkout installations and leaves counter spaces noticeably cleaner.
