Newland NVH220 V2 Lophius AI Industrial Handheld 2D Barcode Scanner

Newland NLS-NVH220-V2-XD (Corded Model)

Newland NLS-NVH220B-V2-XD (Cordless Bluetooth Model)

Maximise data capture in demanding environments with the Newland NVH220 V2 Lophius AI industrial barcode scanner series. Built for heavy-duty warehouse, manufacturing, and logistics operations, this rugged series is available in two distinct formats to fit your exact operational requirements: the corded NLS-NVH220-V2-XD for fixed workstations and the cordless, Bluetooth-enabled NLS-NVH220B-V2-XD for mobile applications.

Both models feature artificial intelligence (AI) decoding software, allowing operations to maintain pace regardless of barcode condition.

Key Models Available

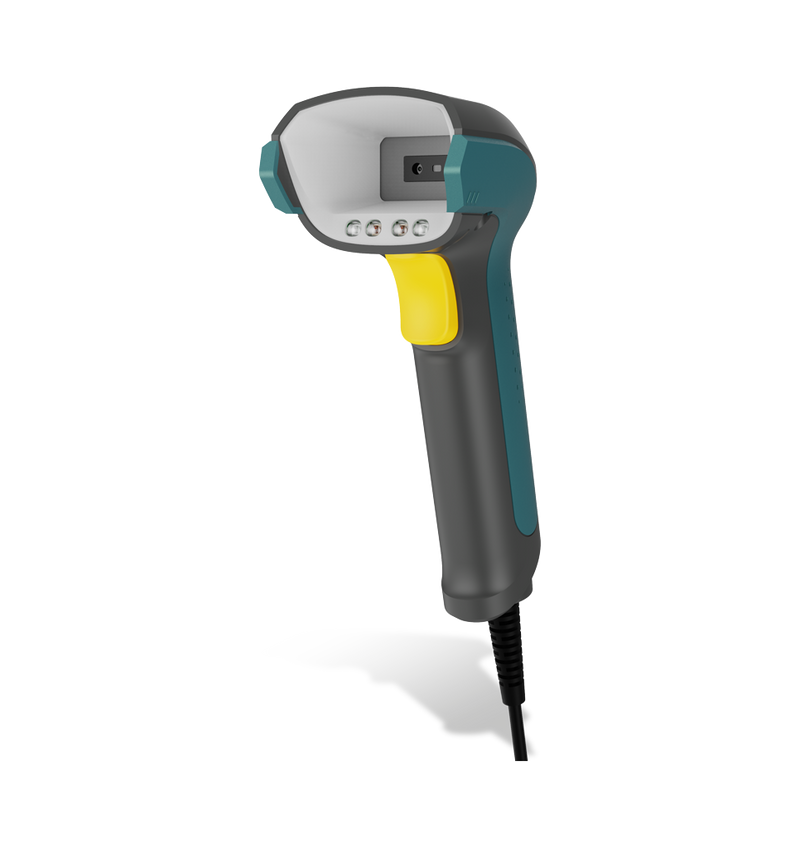

1. Newland NLS-NVH220-V2-XD (Corded Model)

• Connection Type: Corded multi-interface (USB, RS232 Serial, PS/2, Ethernet via multi-IF cable setup).

• Power Source: Direct host power or standard power supply unit.

• Best Used For: Fixed production lines, static packing stations, conveyor sorting systems, and permanent retail or wholesale checkouts where continuous power and stable data transfer are vital.

• What is in the box: Handheld scanner unit, 2-metre straight USB interface cable, power supply setup.

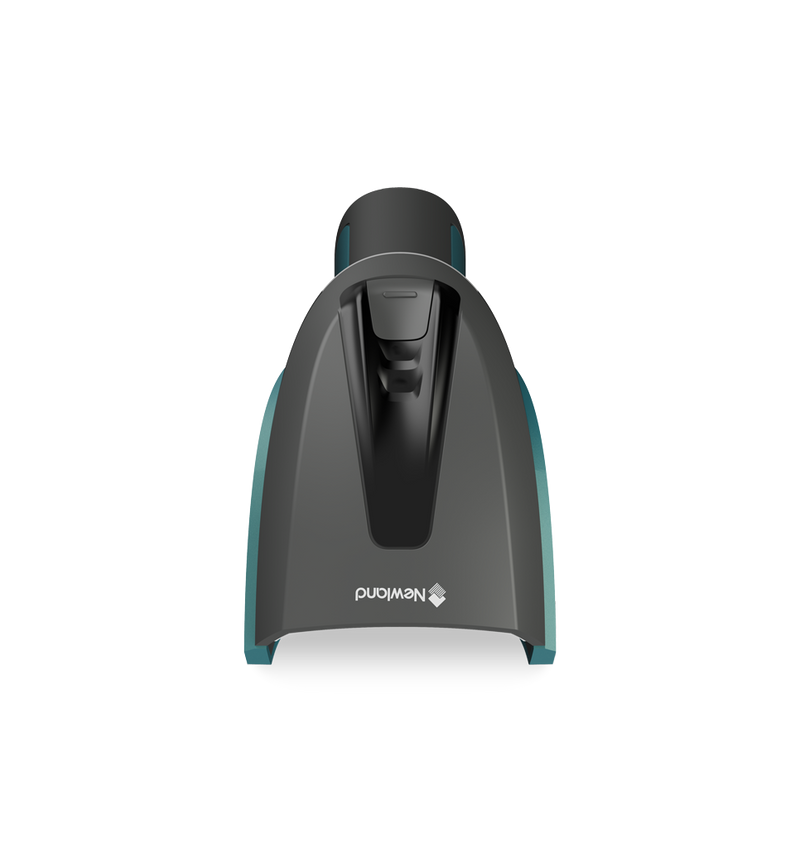

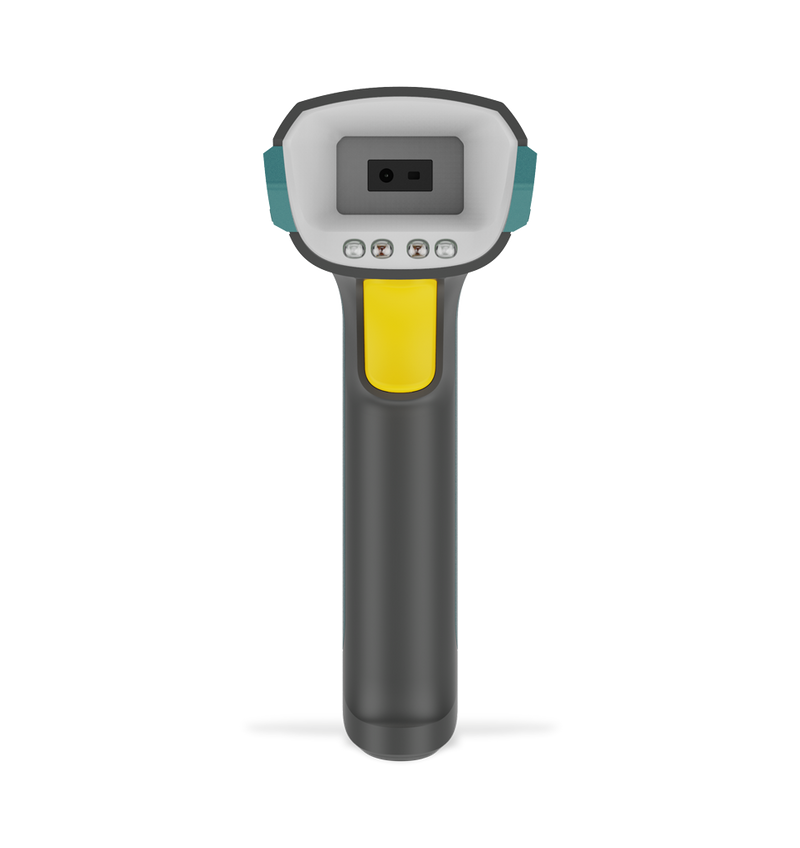

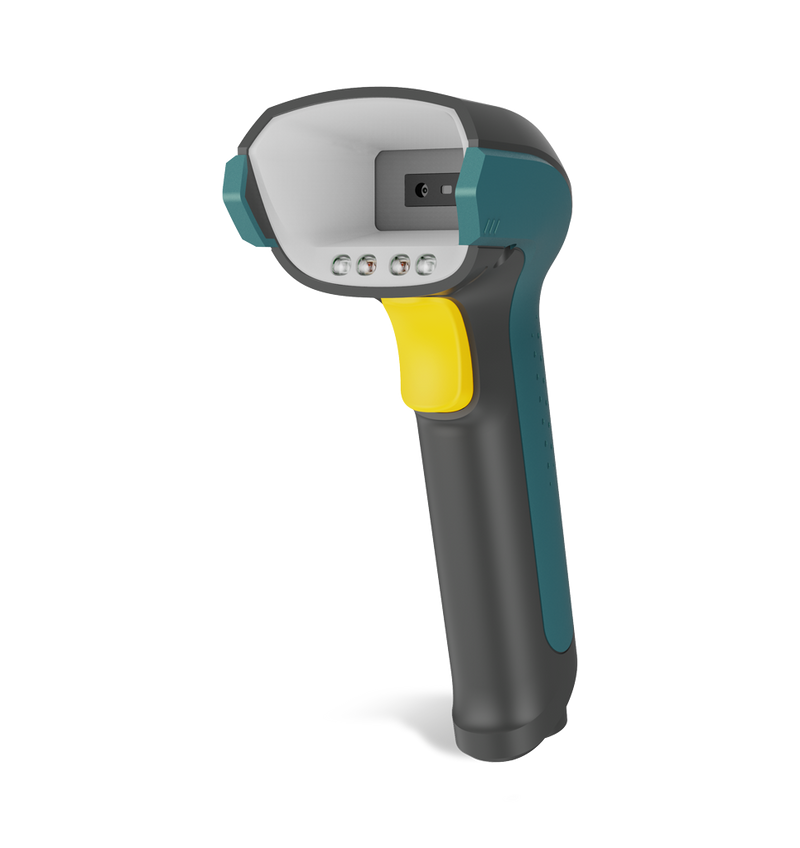

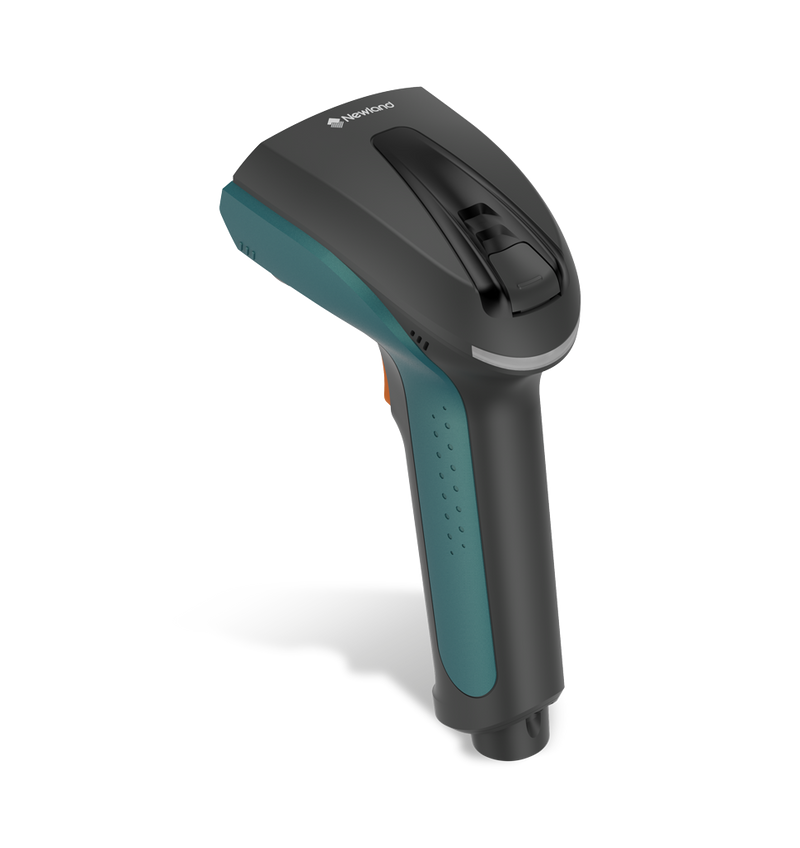

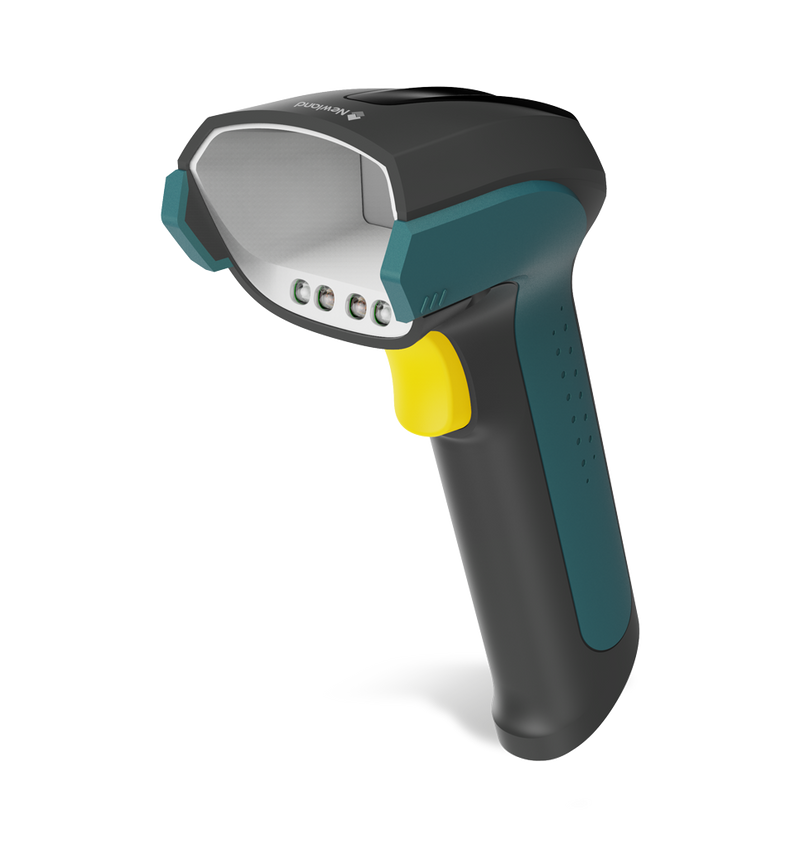

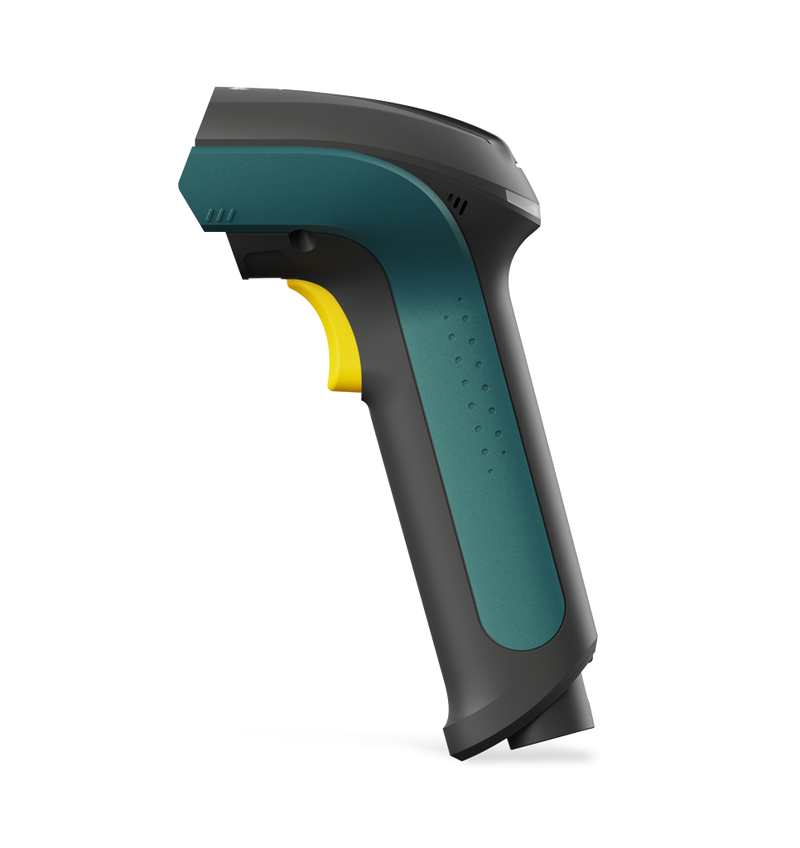

2. Newland NLS-NVH220B-V2-XD (Cordless Bluetooth Model)

• Connection Type: Wireless Class 5.0 Bluetooth connectivity with a radio transmission range up to 150 metres from the base station.

• Power Source: High-capacity 2900 mAh rechargeable lithium-ion battery.

• Best Used For: Stocktaking, large-scale inventory management, pallet scanning, forklift operations, and picking workflows across expansive warehouse floors.

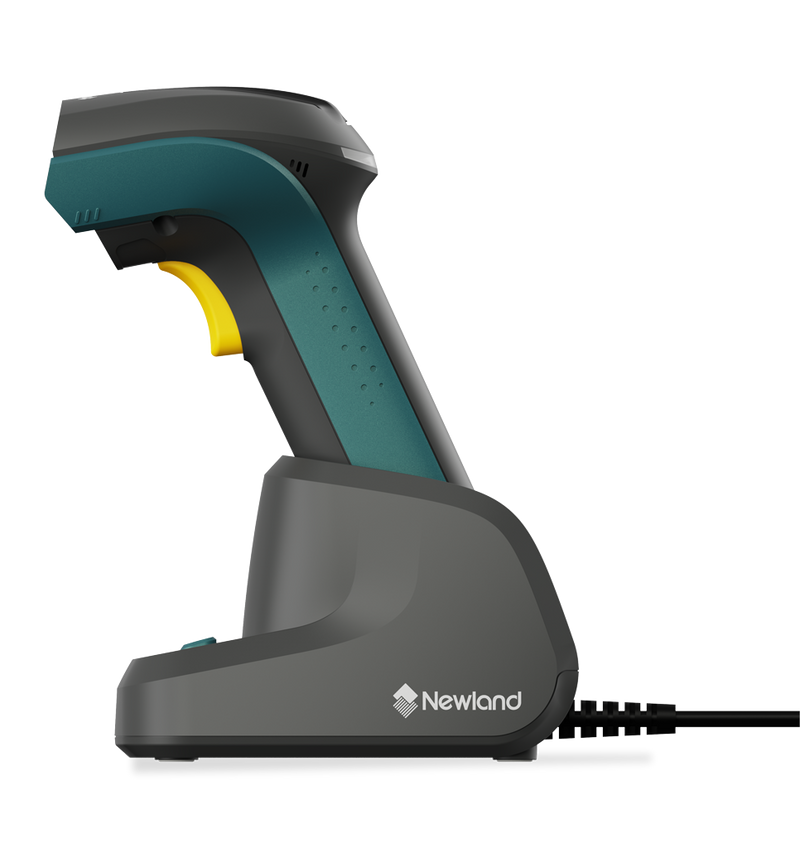

• What is in the box: Handheld Bluetooth scanner unit, smart charging and data transmission cradle, 2-metre straight USB cable, 2900 mAh battery pack, 5V power supply.

Technical Specifications & Performance Features

AI-Powered Barcode Decoding & DPM Scanning

Equipped with parallel dual-core processing hardware and AI-driven deep-learning algorithms, the NVH220 V2 range tackles complex tracking labels. It reads standard 1D linear barcodes and high-density 2D matrix codes (such as QR codes and DataMatrix) instantly. Crucially, the series decodes Direct Part Marking (DPM) laser-etched or dot-peened directly onto metal, plastic, or glass components. The internal software easily reads distorted, low-contrast, dirty, or physically torn warehouse labels.

Intelligent Adaptive Illumination

To combat varying warehouse lighting conditions, the scanner integrates a dual-source illumination engine. Combining direct and diffuse lighting setups, the optical system automatically adjusts light paths depending on the surface material. This suppresses glare from reflective shrink-wrap, metallic components, and polished plastics, guaranteeing accurate data capture on the first attempt.

Heavy-Duty Industrial Build (IP64 Rated)

Engineered for harsh industrial workplaces, the ruggedised outer housing carries an IP64 dust and water protection rating. The sealed casing prevents fine particulate ingress and resists water splashes. The physical construction absorbs mechanical shock, surviving repeated drops onto concrete floors from heights of up to 1.8 metres.

Physical Haptic Feedback

In loud industrial settings where audible beepers are drowned out by machinery, forklift traffic, or conveyor systems, the NVH220 V2 uses a built-in vibration motor alongside a bright LED indicator. The haptic shake gives operators instant confirmation of a successful scan, reducing duplicate scans and tracking errors.

Enterprise Integration & Configuration

With native multi-interface support covering USB, RS-232, and keyboard wedge options, these units integrate into existing Warehouse Management Systems (WMS), Enterprise Resource Planning (ERP) setups, or industrial computer terminals. Device management, formatting rules, and firmware updates can be handled locally via Newland’s EasySet configuration tool.

Summary Technical Table
