Ubiquiti EdgeMAX EdgeRouter Infinity (ER-8-XG)

The Ubiquiti ER-8-XG (EdgeRouter Infinity) is an enterprise-grade core routing gateway built for massive throughput, high-density packet forwarding, and absolute infrastructure redundancy. Occupying a standard 1U rackmount chassis, this flagship carrier-class platform is engineered for regional internet service providers (ISPs), core data centres, high-volume corporate backbones, and complex multi-site enterprise topologies.

Powered by a massive 16-core processing engine, the ER-8-XG delivers an exceptional layer 3 forwarding rate of 18 million packets per second (Mpps) for small 64-byte packets and scales seamlessly to an 80 Gbps aggregate line rate capacity.

16-Core Heavyweight Compute Processing Brain

The internal processing hardware is built to handle intensive internet border routing and intensive protocol tables simultaneously without bottlenecking:

• 1.8 GHz MIPS64 Network Engine: Driven by an industrial 16-core processor running at 1.8 GHz per core, providing immense computational capacity for high-stress throughput spikes.

• 16 GB DDR4 RAM Cache: Backed by 16 GB of ultra-fast DDR4 system memory. This extensive RAM cache allows the router to store multiple full global BGP routing tables natively, making it a reliable choice for edge routing applications.

• Hardware Acceleration Array: Features dedicated on-die hardware-offload processors that bypass the main CPU cores to manage core network address translation (NAT), stateful firewalls, and deep packet filtering directly at full wire speed.

High-Density 10G SFP+ Fibre Interface Grid

The front panel layout provides direct access to high-capacity optical connections, eliminating localised media translation devices:

• Eight Autonomous 10 Gbps SFP+ Ports: Features eight independent 10G SFP+ transceiver cages that operate on a dedicated non-blocking matrix. Each port can function as a completely separate Layer 3 routed boundary or bind together into multi-link LACP trunk paths.

• Dual Mode SFP Flexibility: The SFP+ ports are arranged into two individual groups of four. Via software configuration, each block can be toggled to accept legacy 1G SFP transceivers or high-speed 10G SFP+ optics based on project infrastructure demands.

• Dedicated Copper Out-of-Band Management: Outfitted with an isolated Gigabit RJ45 copper interface (eth0) designed for out-of-band management access, along with a standard RJ45 serial console port for direct command line control.

Carrier-Tier Redundant Power Supply Framework

To minimise system downtime from local electrical utility failures, the ER-8-XG utilises a modular, fault-tolerant power setup:

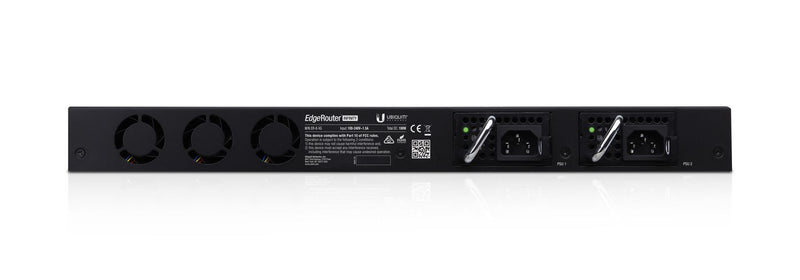

• Dual Hot-Swappable 100W AC/DC Modules: Ships standard with two pre-installed, load-sharing 100W AC/DC power supply units (RPS-AC-100W). The chassis distributes power load across both units simultaneously. If one grid fails, the other instantly assumes the entire power load with zero drop-outs.

• Optional DC/DC Customisation: For telecom distribution spaces running isolated battery banks, the factory modules can be hot-swapped for secondary DC/DC modules (RPS-DC-100W, available separately) to accept native 38V to 54V DC power.

Port Assignment & Interface Matrix

Hardened Bare-Metal EdgeOS Operating Suite

• Industrial Protocol Options: Driven natively by EdgeOS, providing full access to core provider technologies including dynamic OSPFv3, BGP4 with extensive IPv6 prefix parsing, RIPng, MPLS framing, and advanced VPLS service mappings.

• Granular Zone-Based Security: Features comprehensive access control list (ACL) rulesets and a highly scalable zone-based firewall architecture, managing thousands of simultaneous traffic sessions with deep packet inspection (DPI) packet grouping.

• Centralised UISP Node Integration: Can be fully adopted into the cloud-hosted Ubiquiti Internet Service Provider (UISP) software platform. This central dashboard allows operators to track optical transceiver laser levels, push bulk firmware updates, and view historic traffic trends remotely.

Technical Specifications

• Dimensions: 442.4 mm x 285.6 mm x 43.7 mm (Standard 1U Form Factor)

• Weight: 4.95 kg (Chassis bare) | 5.05 kg (With integrated rackmount brackets)

• Chassis Composition: Heavy-gauge SGCC industrial structural steel

• Onboard Flash Storage Matrix: 4 GB eMMC NAND Flash backed by an isolated 8 MB SPI NOR boot module

• Non-Blocking Aggregated Throughput: 80 Gbps line-rate processing

• Maximum Active Chassis Power Consumption: 100 Watts

• Chassis Electrostatic Safety (ESD/EMP): Air and contact discharge protection limits of ± 24 kV

• Ambient Storage/Operating Temperature Window: -5°C up to 40°C

Box Contents

• Ubiquiti EdgeRouter Infinity (ER-8-XG Main Frame)

• 2 x Hot-Swappable 100W AC/DC Power Supply Modules (Pre-fitted)

• 2 x Standard UK 3-Pin Mains Power Input Cables

• 19" Standard 1U Equipment Rack Mounting Bracket Wings & Fixing Screws Pack

• Chassis Grounding Earth Terminal Nut Assembly

• Quick-Start System Commissioning Manual
