Allsee PCAP Self-Service Kiosks | SO-Series (22" & 27")
Do you need more information about this product?
Contact our friendly team and we'll be happy to help!

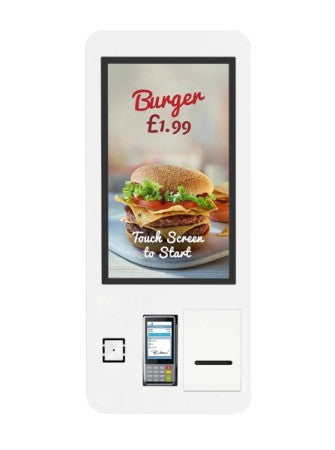

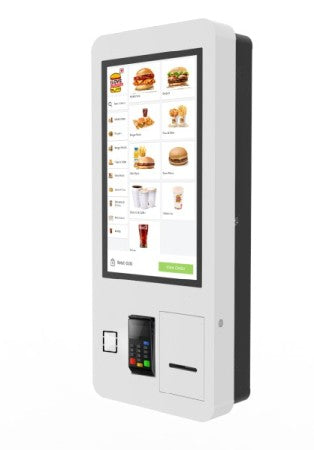

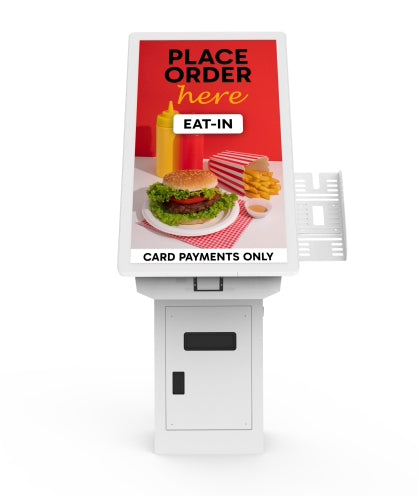

The Allsee PCAP Self-Service Kiosk is a comprehensive, all-in-one automated ordering solution designed to reduce queues and enhance the customer journey. Engineered for 24/7 commercial use, these kiosks feature a high-performance Intel Core i5 Windows PC integrated into a secure, slimline metal enclosure.
Equipped with a 10-point Projected Capacitive (PCAP) multi-touch display, an integrated 80mm thermal printer, and a 2D barcode/QR scanner, the SO-Series provides everything needed for self-service ordering, ticketing, and check-in.
Variant & SKU Guide
| Part Code | Screen Size | Resolution | Brightness | Integrated PC | Installation Options |
| SO22B | 22 Inch | 1080 x 1920 | 250 cd/m² | Intel Core i5 | Wall, Countertop, or Floor |
| SO27C | 27 Inch | 1080 x 1920 | 350 cd/m² | Intel Core i5 | Wall or Floor Standing |
Technical Specifications
| Feature | Specification Details |
| Processor | Intel Core i5-8259U (Quad-Core, up to 3.8GHz) |
| RAM / Storage | 8GB DDR4 / 256GB M.2 SSD (Expandable) |
| Operating System | Windows 10/11 Pro (Linux/Android also supported) |
| Touch Technology | 10-Point PCAP (Smartphone-style responsiveness) |
| Integrated Printer | 80mm Thermal Receipt Printer (250mm/s) with Auto-Cutter |
| Barcode Scanner | Integrated 2D CMOS (Supports QR & Mobile Scanning) |
| Connectivity | Gigabit Ethernet, Dual-Band Wi-Fi, Bluetooth |
| Security | 6H Toughened Glass, Lockable Access Door, Internal Wi-Fi Router |
| Audio | Dual Integrated 5W Speakers |
| Warranty | 3-Year Commercial Warranty & UK Lifetime Support |
Allsee Cloud CMS Subscription Options
Manage your self-service interface remotely with a MySignagePortal CMS Subscription. This allows you to update menus, run promotional videos, and monitor kiosk status from any UK location.
-
1-Year CMS Subscription: Full cloud network access for 12 months.
-
3-Year CMS Subscription: Discounted multi-year plan for retail chains.
-
Lifetime CMS Subscription: A one-time payment for the life of the kiosk. No recurring annual fees
Key Features for QSR & Retail
-
All-in-One Automated System: Includes a high-speed Epson thermal printer and omni-directional scanner, reducing the need for separate hardware.
-
Easy Maintenance: A lockable front access door allows staff to swap printer rolls or perform tool-free maintenance without removing the unit from the wall.
-
Anti-Vandal Design: Features a thermally toughened 6H glass front and a secure metal enclosure designed for unsupervised public spaces.
-

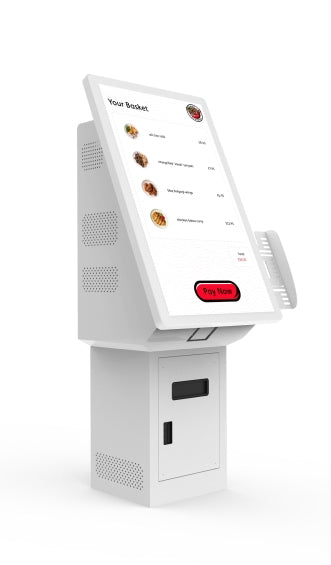

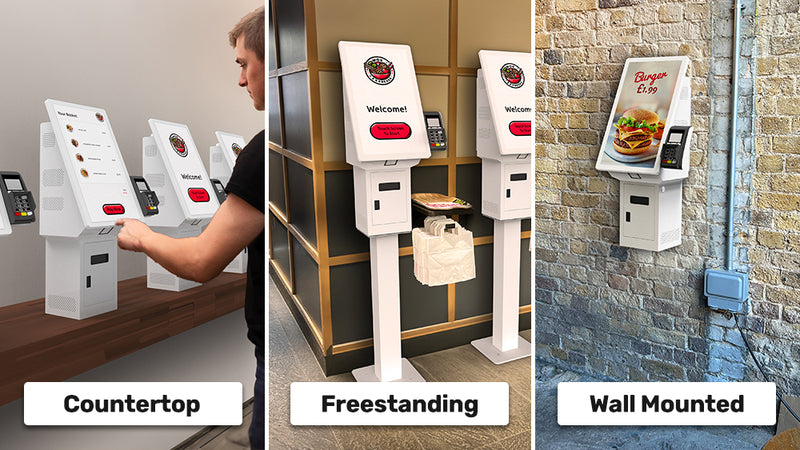

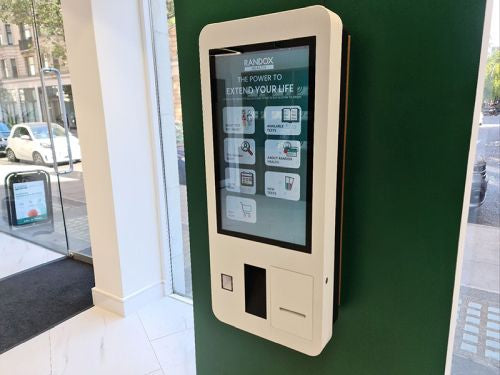

Versatile Mounting: The SO22B is ideal for countertop use in smaller cafes, while the SO27C serves as a high-impact wall-mounted or freestanding floor unit.
-

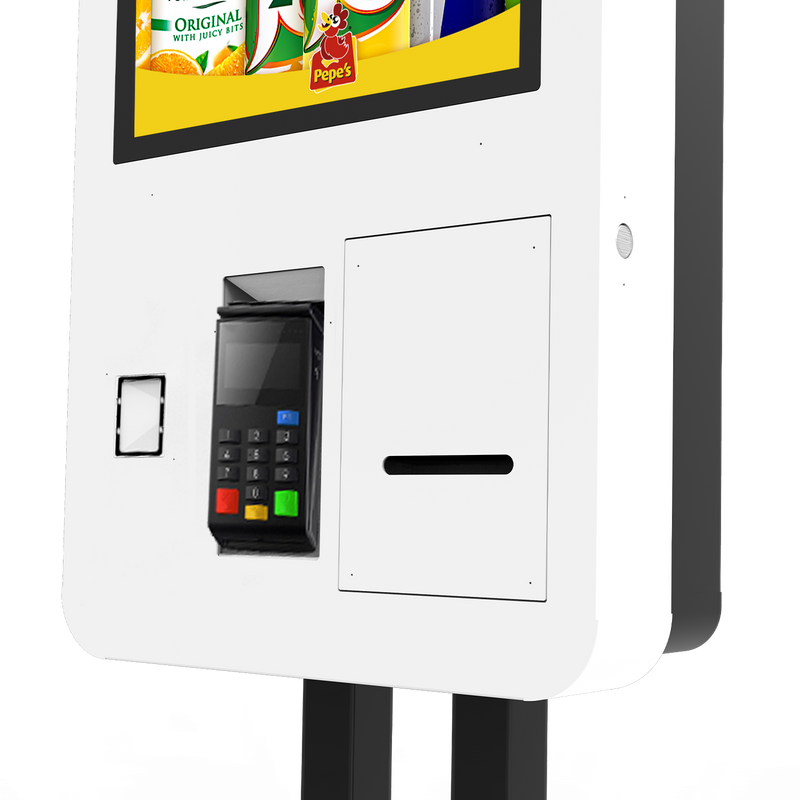

Payment Ready: Dedicated internal space allows for the seamless integration of third-party card payment terminals (NFC/Chip & PIN).
Frequently Asked Questions
Do I need a separate PC to run this kiosk? No. Every Allsee SO-Series kiosk comes with a built-in high-performance Intel Core i5 Windows PC, ready to run your preferred EPOS or self-ordering software.
How do staff change the printer paper? The printer is designed with a separate, easy-access compartment. Staff can replace the 80mm till rolls in seconds without needing to open the main internal components of the kiosk.

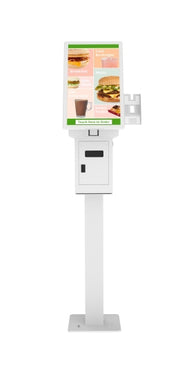

Is a floor stand included? As standard, these units are designed for wall mounting. However, an optional freestanding floor stand is available for both the 22" and 27" models if wall mounting is not possible.
