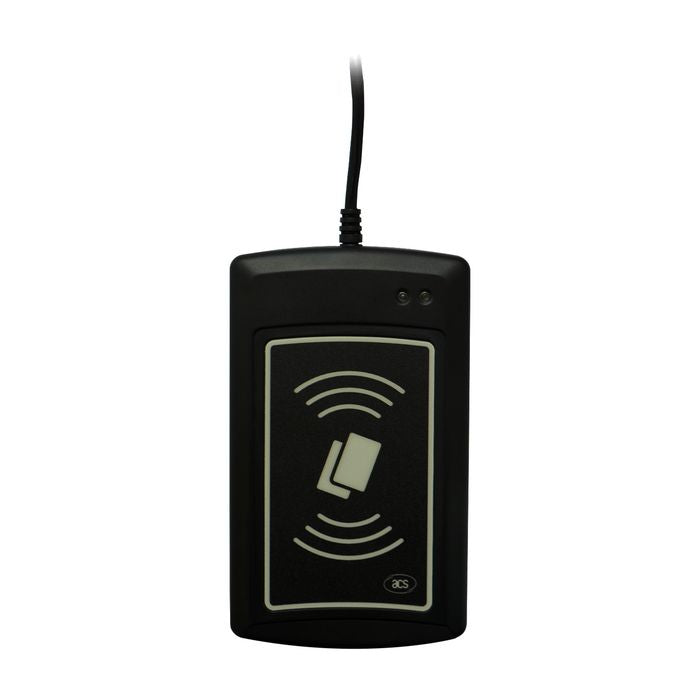

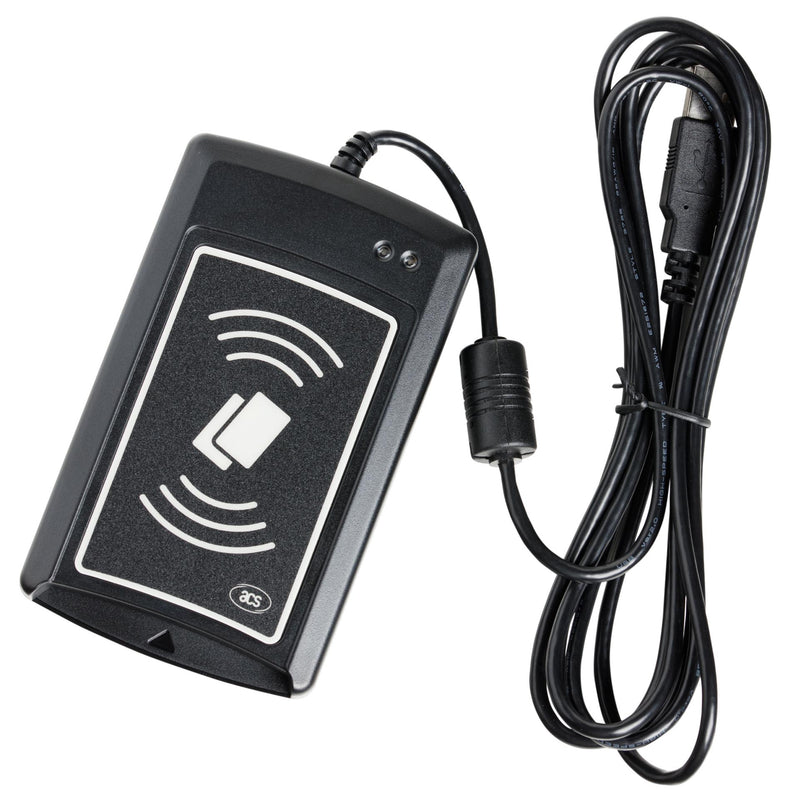

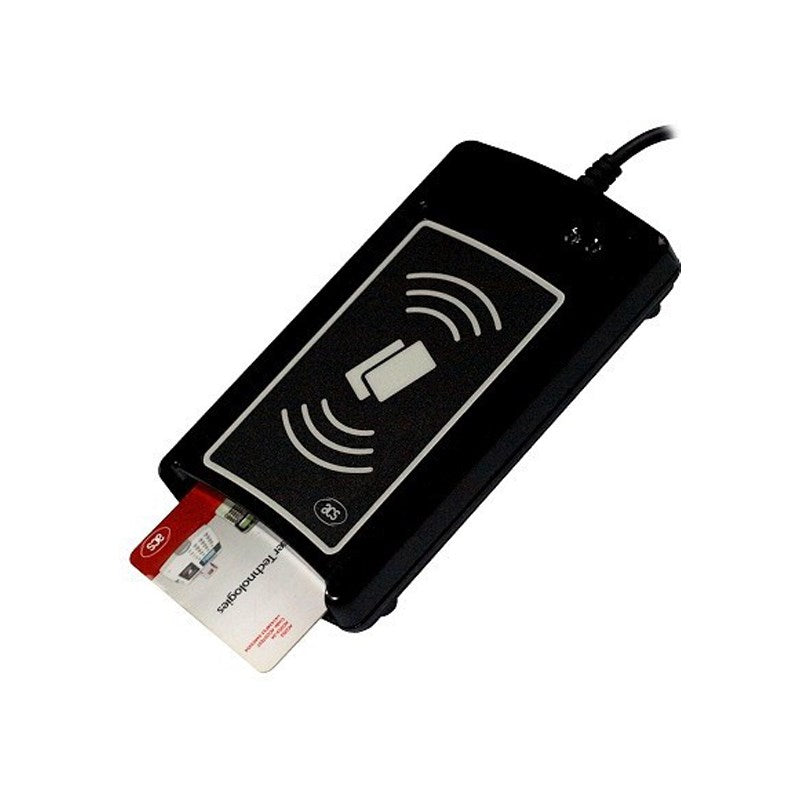

The ACS ACR1281U-C8 (Manufacturer Part Number: ACR1281U-C8ACSA800) is a high-speed contact-free smart card reader operating on the 13.56 MHz frequency. It connects to host equipment via a standard standard USB Type-A interface.
This desktop hardware tool automatically retrieves the Unique Identifier (UID) of any compatible proximity card. Upon detecting a card, it emulates a standard keyboard to paste the card string directly into data fields, removing the requirement for standalone software integration.
Features
-
Keyboard Emulation: Acts as a USB Human Interface Device (HID) to input card UID data directly into text fields without custom driver API configurations.
-
Contactless Support: Operates at 13.56 MHz to read ISO 14443 Part 4 Type A and B cards, MIFARE series cards, and contactless microprocessor credentials.
-
Data Processing Speed: High-speed communication interface supports smart card data transfer rates up to 848 Kbps.
-
Integrated Components: Includes a built-in operating indicator LED and a programmable buzzer to provide audio-visual confirmation of card reads.
System Compatibility
-
Windows: 7, 8, 8.1, 10, and 11
-
macOS: 10.x and newer
-
Linux
-
Android: 3.1 and later (requires device USB host configuration)
Technical Specifications
| Feature | Details |
| Host Interface | USB 2.0 Full Speed (Type-A Connector) |
| Operating Frequency | 13.56 MHz |
| Operating Distance | Up to 50 mm (depending on card antenna geometry) |
| Firmware Upgradeable | USB Interface Support |
| Cable Length | 2.0 metres (fixed, non-detachable) |
| Dimensions | 120.5 mm × 72.0 mm × 20.4 mm |
| Weight | 140 grams |
| Certifications | PC/SC, CCID, CE, FCC, RoHS, REACH, UKCA |
