Ubiquiti EdgeRouter 4 | 4-Port Gigabit Router with SFP

Ubiquiti EdgeMAX EdgeRouter 4 (ER-4)

The Ubiquiti ER-4 is a carrier-class, high-performance Gigabit routing appliance engineered to deliver exceptional processing density within an ultra-compact, fanless desktop footprint. Representing the next generation of the hardened EdgeMAX platform, this enterprise-grade gateway is designed from the ground up for small-to-medium business networks, remote branch links, and independent internet service provider (WISP) entry cabinets.

Driven by an absolute bare-metal architecture, the ER-4 achieves massive throughput capabilities at a disruptive price point, delivering up to 3.4 million packets per second (pps) for small 64-byte packets.

Hardware-Offloaded Performance & Octeon Processing

The primary architectural advantage of the ER-4 is its dedicated processing layout, which handles intense security routing rules without bottlenecking network speeds:

• Quad-Core MIPS64 Core: Powered by a high-efficiency 4-core, 1 GHz MIPS64 processor (Cavium Octeon III platform) backed by 1 GB of high-speed DDR3 RAM. This dedicated processing engine easily sustains heavy data streams, deep packet inspections, and firewall rule enforcement.

• 4 Gbps Line-Rate Routing: Supports true hardware acceleration offloading for IPv4 and IPv6 traffic. When handling packet sizes of 128 bytes or larger, the router effortlessly achieves full 4 Gbps aggregate line-rate throughput.

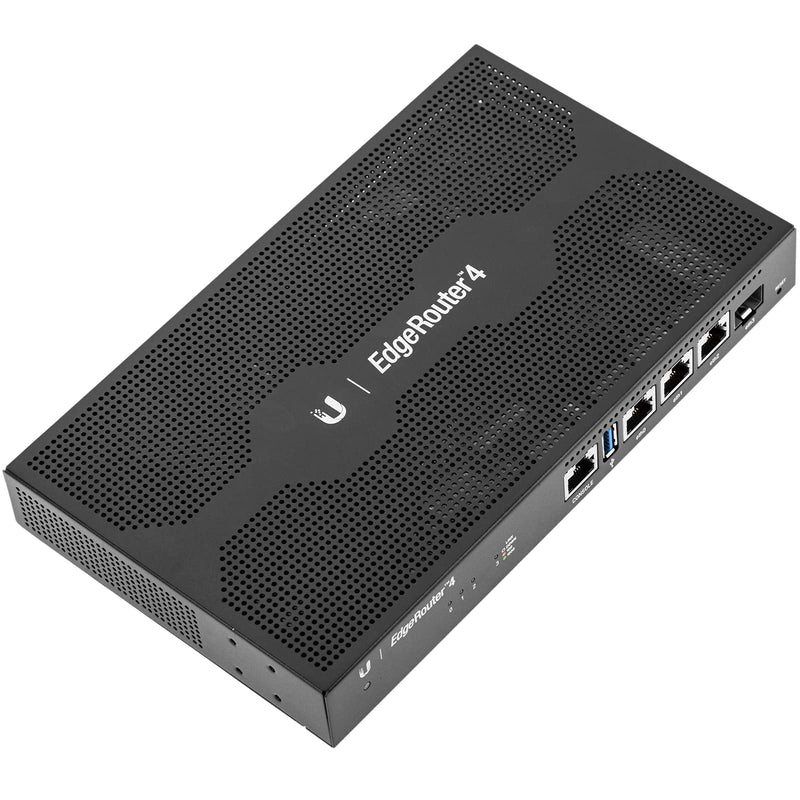

• Completely Fanless Silent Thermal System: Engineered with a specialized interior heat-sink framework that relies entirely on passive, non-mechanical convection cooling. With zero moving cooling parts, the ER-4 operates in total silence, significantly reducing structural failure points over years of continuous use.

Port Interface & Throughput Allocation

Unlike budget routers that utilize a single shared internal switch chip, the networking interfaces on the ER-4 operate as completely independent layer-3 interfaces for granular sub-network mapping:

Bare-Metal Enterprise EdgeOS Integration

• Granular Security Configuration: Powered natively by EdgeOS, a highly sophisticated, intuitive operating system tailored for advanced network administrators. Features immediate setup controls for multiple DHCP scopes, deep firewall zone policies, localized NAT translation overrides, and advanced dynamic routing protocols like OSPF, RIP, and BGP.

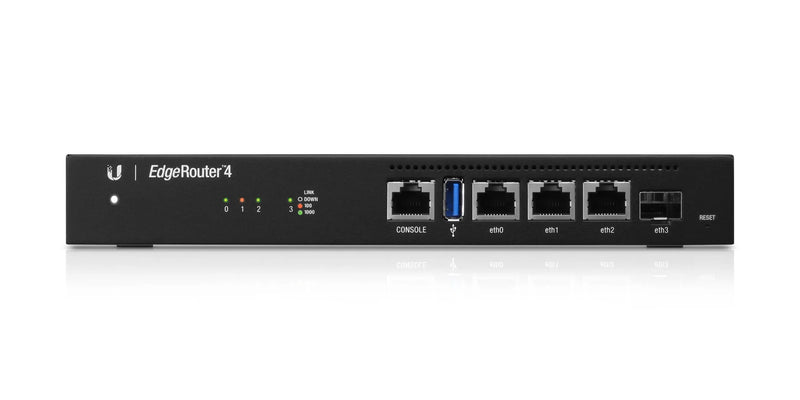

• Direct Command Line Interface (CLI): Features an integrated front-facing RJ45 Serial Console port. Advanced professionals can bypass the graphical interface to interact directly with the underlying system configurations via standard industry command structures.

• Centralised Cloud Monitoring: Fully compatible with the Ubiquiti Internet Service Provider (UISP) platform. This integration allows multiple distributed EdgeMAX devices across various physical addresses to be actively managed, updated, and tracked through a single centralized interface.

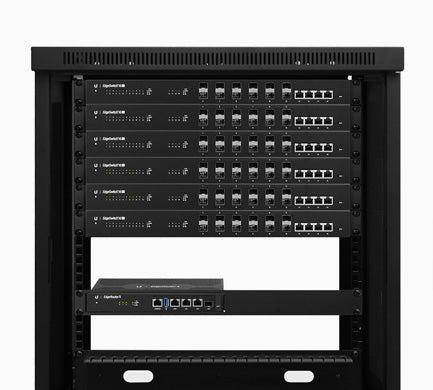

Installer Chassis Placement Note: Out of the box, the ER-4 is configured as a compact desktop or flush wall-mountable device. For standardized 19" server rack installations, the ER-4 can be cleanly housed using the official EdgeRouter Rackmount Kit (ER-RMKIT), which is sold separately.

Technical Specifications

• Dimensions: 229.0 mm x 136.5 mm x 31.1 mm

• Weight: 795 grams

• Enclosure Materials: Premium durable SGCC structural steel casing

• Onboard Flash Storage: 4 GB eMMC, 8 MB SPI NOR bootloader blocks

• Inbound Power Source: Internal AC/DC power adapter module (30W DC rated)

• Power Connection Type: Standard universal C13 IEC input socket

• Maximum Active Power Draw: Efficient 13 Watts

• Chassis ESD/EMP Protection: Heavy-duty Air: ± 24 kV / Contact: ± 24 kV safety boundaries

• Ambient Operating Temperature: -10°C up to 50°C

Box Contents

• Ubiquiti EdgeRouter 4 (ER-4 Metal Chassis)

• Standard UK IEC Mains Power Cable

• Wall Mount Anchor Plugs and Self-Tapping Installation Screws Kit

• Official Quick Start Instruction Manual
