Ubiquiti UniFi6 Extender - EU Plug (U6-EXTENDER-EU)

Product Overview The Ubiquiti UniFi6 Extender is a plug-and-play wireless access point designed to expand the reach of an existing UniFi Wi-Fi 6 network. Built with an integrated EU-style mains plug, the unit slots directly into a standard European wall socket, completely bypassing the need for network cabling, power cords, or mounting brackets. It functions by wirelessly linking to a nearby UniFi access point and rebroadcasting the signal, filling dead zones in large homes or sprawling office layouts.

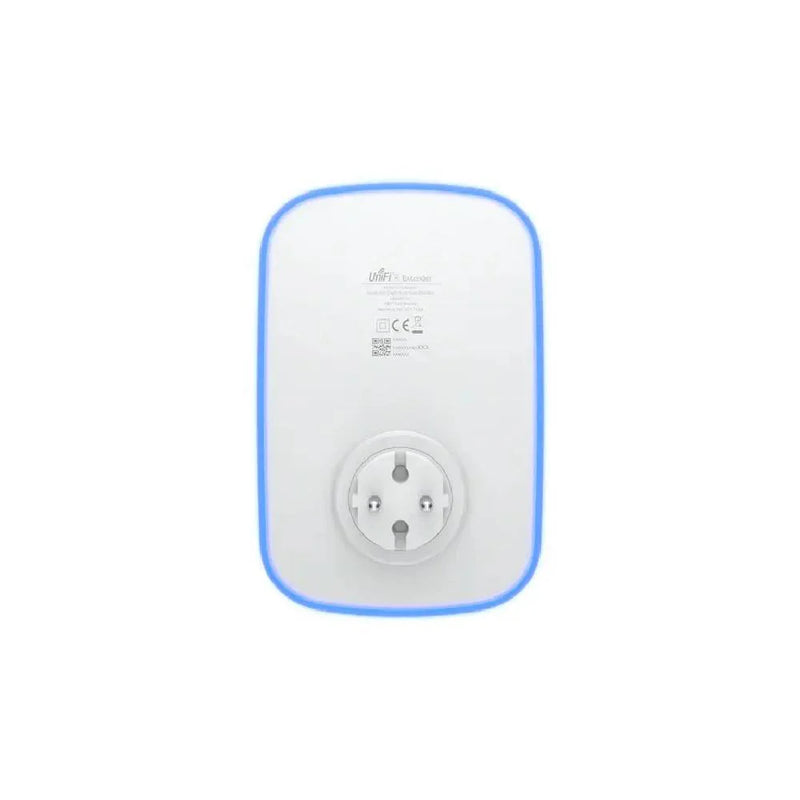

Please Note: This unit features a native Type F (Schuko) European plug layout. For use within standard UK electrical systems, a physical EU-to-UK plug adapter is required. Additionally, it must be adopted by an existing UniFi wireless network controlled by a UniFi console or server, as it does not operate as a standalone router.

Key Features

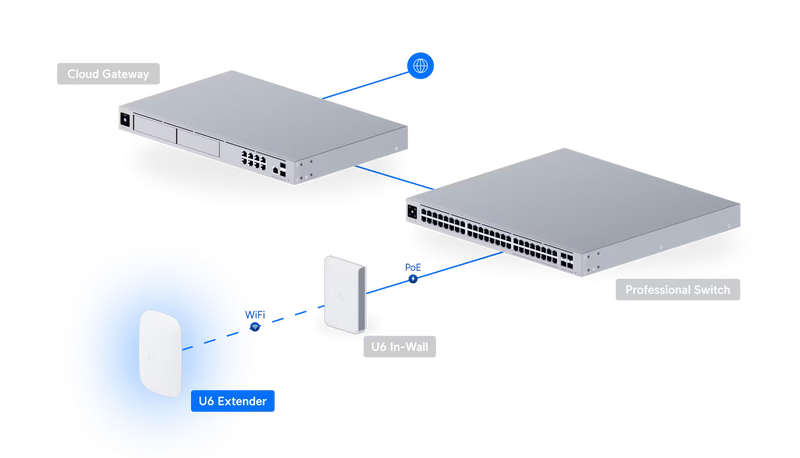

• Wireless Mesh Expansion: Connects wirelessly to your primary UniFi access point to repeat and extend your network coverage without running new Ethernet drops through walls.

• Dual-Band Wi-Fi 6 Support: Utilises the 802.11ax standard to handle data traffic efficiently across both 2.4 GHz and 5 GHz radio bands simultaneously.

• High-Capacity Throughput: Delivers data rates up to 4.8 Gbps on the 5 GHz band (using 4x4 MU-MIMO) and 573.5 Mbps on the 2.4 GHz band (using 2x2 MU-MIMO).

• High Client Capacity: Engineered to maintain stable connections for over 300 client devices concurrently, making it suitable for hardware-heavy workspaces.

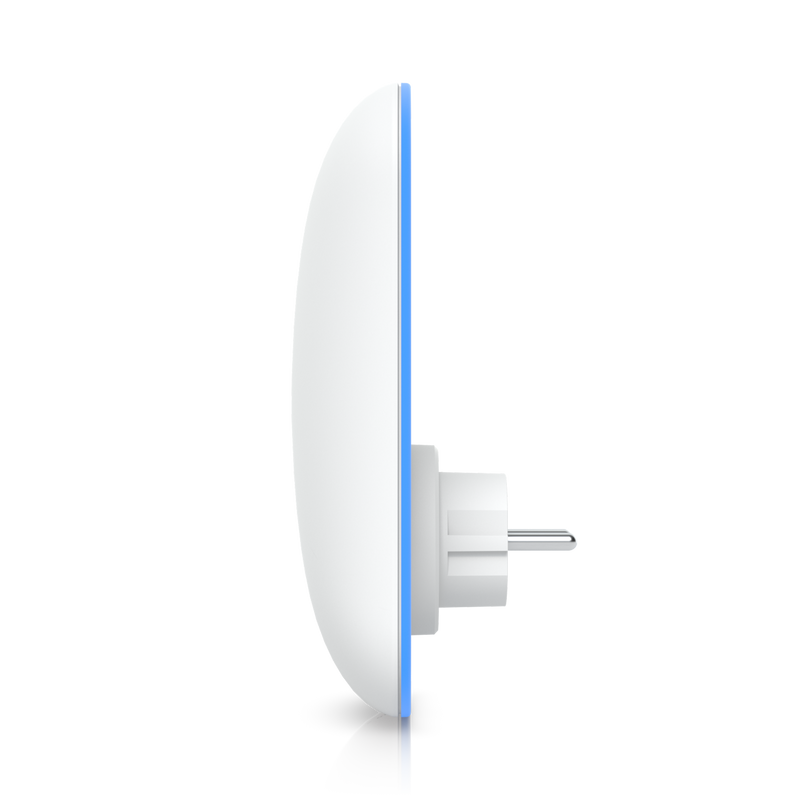

• Direct Socket Mounting: Designed to plug straight into a power outlet, sitting flush against the wall surface to save floor and desk space.

• Centralised Management: Fully configured and monitored through the UniFi Network software, allowing you to view connection topology and update firmware remotely.

Technical Specifications

• Manufacturer Part Code (MPN): U6-EXTENDER-EU

• Dimensions: 169.7 x 112.2 x 77.6 mm

• Weight: 340 g

• Enclosure Material: Polycarbonate

• Management Interface: Bluetooth (for initial setup via app)

• Wi-Fi Standards: 802.11a/b/g, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6

• MIMO Configuration: 2.4 GHz (2x2) | 5 GHz (4x4)

• Antenna Gain: 2.4 GHz: 5 dBi | 5 GHz: 6 dBi

• Power Method: Universal AC input, 100–240V AC, 50/60 Hz

• Max. Power Consumption: 11W

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• Operating Temperature: -10 to 50°C

What's in the Box?

• 1 x Ubiquiti UniFi6 Extender (EU Plug Variant)

• 1 x Quick Start Reference Guide
