Ubiquiti UniFi U7 Pro Wall Tri-Band Wi-Fi 7 Access Point (U7-PRO-WALL)

Product Overview The Ubiquiti U7-PRO-WALL is a sleek, low-profile wall-mounted access point designed to bring high-capacity Wi-Fi 7 performance to modern residential and commercial interiors. By leveraging the completely uncrowded 6 GHz radio band alongside standard 2.4 GHz and 5 GHz frequencies, this tri-band unit delivers an aggregate wireless throughput of up to 10.7 Gbps. Its specialized interior design and customized internal antenna array project signals forward, making it an excellent alternative to traditional ceiling-mount layouts. Powered cleanly through a 2.5 Gbps Ethernet port via PoE+, it easily handles high-density traffic in boutique hotels, corporate offices, medical clinics, and modern smart homes.

Please Note: This access point requires a PoE+ (Power over Ethernet) source, such as a PoE+ network switch or a separate 30W injection unit, to operate. A dedicated power supply unit is not packed inside the retail box.

Key Features

• Tri-Band Wi-Fi 7 Infrastructure: Utilises advanced 802.11be technology across the 2.4 GHz, 5 GHz, and 6 GHz spectrums to achieve multi-gigabit speeds and ultra-low signal latency.

• 6 Spatial Streams: Employs a 2x2 multi-user MIMO architecture on all three radio bands simultaneously, ensuring efficient data distribution for high-bandwidth tasks.

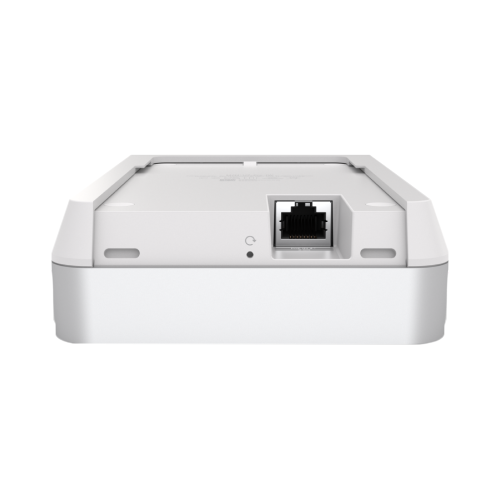

• Multi-Gigabit Ethernet Uplink: Outfitted with a 2.5 GbE RJ45 interface port to sustain the rapid backbone data rates required by next-generation wireless clients.

• Subtle, Slimline Fitting: Sits tightly against interior walls with a low-impact chassis design that avoids the prominent bulk of standard networking hardware.

• Expansive Interior Reach: Comfortably services a wireless footprint up to 140 square metres (1,500 square feet) while managing connections for more than 300 devices.

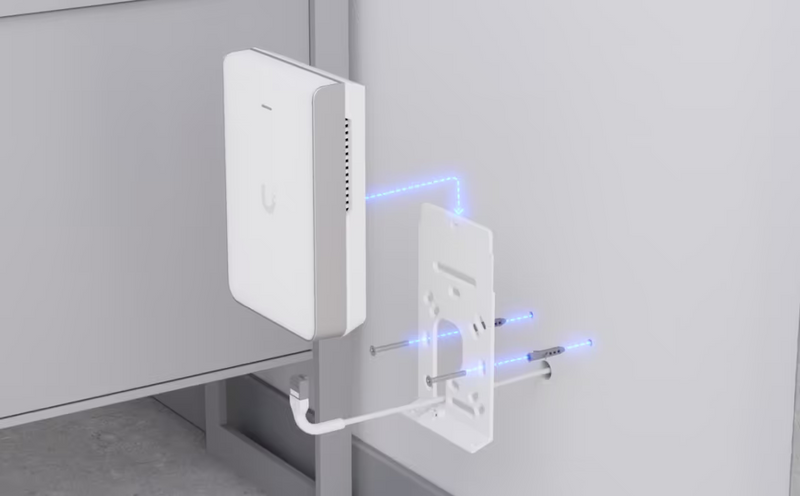

• Flexible Deployment Options: Works out of the box with the included aluminum wall bracket, or can be adapted using dedicated flush-mount and desktop stand accessories (sold separately).

Technical Specifications

• Manufacturer Part Code (MPN): U7-PRO-WALL

• Dimensions: 150 x 103 x 36 mm

• Weight: 580 g

• Enclosure Material: Polycarbonate, Aluminium

• Mounting Plate Material: Aluminium

• Networking Interface: 1 x 1/2.5 Gbps RJ45 port

• MIMO Configuration: 2.4 GHz (2x2) | 5 GHz (2x2) | 6 GHz (2x2)

• Maximum Throughput Rates:

  • 2.4 GHz: 688 Mbps (40 MHz channel)

  • 5 GHz: 4.3 Gbps (240 MHz channel)

  • 6 GHz: 5.7 Gbps (320 MHz channel)

• Antenna Gain: 2.4 GHz: 4 dBi | 5 GHz: 5 dBi | 6 GHz: 6 dBi

• Power Method: 802.3at PoE+ (Supported range: 44–57V DC)

• Max. Power Consumption: 22W

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

• Operating Temperature: -30 to 60°C

• Management Requirement: UniFi Network application version 8.1 or later

What's in the Box?

• 1 x Ubiquiti UniFi U7 Pro Wall Access Point

• 1 x Aluminium Wall Mounting Bracket

• 1 x Installation Screws, Anchors, and Leveling Accessory Kit
