Ubiquiti UniFi U7 Outdoor Wi-Fi 7 Access Point (U7-OUTDOOR)

Product Overview The Ubiquiti U7-OUTDOOR is a high-performance, all-weather wireless access point designed to deliver next-generation Wi-Fi 7 connectivity to expansive exterior spaces. Encased in a rugged, IPX6-rated weatherproof housing, this dual-band unit is built to withstand heavy rain, dust, and extreme temperature fluctuations. It features an innovative dual-antenna setup: an integrated directional internal antenna for concentrated long-range coverage up to 465 square metres, plus two detachable external omnidirectional antennas for wider signal distribution. Powered via PoE+ and equipped with a 2.5 Gbps Ethernet uplink, it provides the massive data bandwidth needed for busy public venues, commercial yards, and outdoor hospitality areas.

Please Note: This access point requires a PoE+ (Power over Ethernet) source, such as a PoE+ network switch or a separate injection unit, to operate. A dedicated power supply unit is not packed inside the retail box.

Key Features

• Next-Generation Wi-Fi 7 Performance: Implements advanced 802.11be technology across four spatial streams to maximise wireless speeds, reduce signal latency, and increase spectral efficiency.

• Dual-Antenna Versatility: Offers a high-gain internal directional antenna for targeted beam pathways, or switchable coverage profiles using the two included external omnidirectional antennas.

• Massive Coverage Footprint: Engineered to broadcast a reliable wireless signal across open outdoor spaces up to 465 square metres (5,000 square feet).

• Multi-Gigabit Wired Uplink: Equipped with a 2.5 GbE RJ45 connection port to eliminate network bottlenecks between the access point and your core hardware switch.

• All-Weather Resilience: Features an industrial IPX6 rating with UV-stabilised construction to survive high winds, direct sunlight, and torrential downpours.

• High Client Capacity: Comfortably maintains stable wireless links for more than 250 connected client devices simultaneously, preventing dropouts during peak usage.

Technical Specifications

• Manufacturer Part Code (MPN): U7-OUTDOOR

• Dimensions: 170 x 208 x 54.5 mm

• Weight: 1.2 kg

• Enclosure Material: UV-stabilised Polycarbonate, Aluminium Alloy

• Weatherproofing Rating: IPX6

• Networking Interface: 1 x 1/2.5 Gbps RJ45 port

• Wi-Fi Standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 4 through to Wi-Fi 7)

• MIMO Configuration: 2.4 GHz (2x2) | 5 GHz (2x2)

• Maximum Data Rate: 2.4 GHz: 688 Mbps | 5 GHz: 4.3 Gbps

• Antenna Gain (Internal Directional): 2.4 GHz: 8 dBi | 5 GHz: 12.5 dBi

• Antenna Gain (External Omni): 2.4 GHz: 3 dBi | 5 GHz: 4 dBi

• Power Method: PoE+ (Supported range: 42.5–57V DC)

• Max. Power Consumption: 19W

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

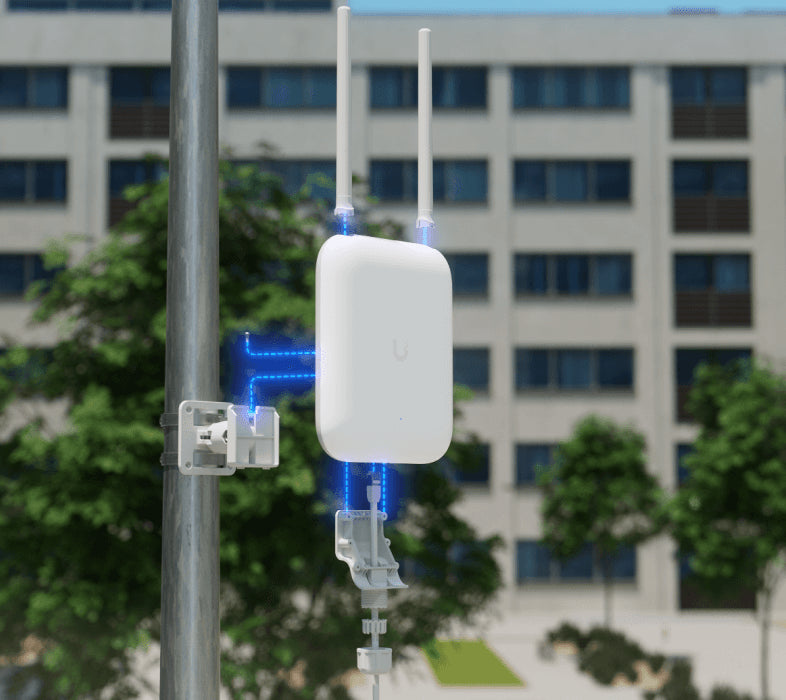

• Mounting Options: Wall, pole, or ceiling (Mounting brackets included)

• Operating Temperature: -30 to 60°C

What's in the Box?

• 1 x Ubiquiti UniFi U7 Outdoor Access Point

• 1 x Wall/Pole Mounting Bracket Assembly

• 2 x External Omnidirectional Antennas

• 1 x Installation Screws and Shielded Cable Gland Pack
