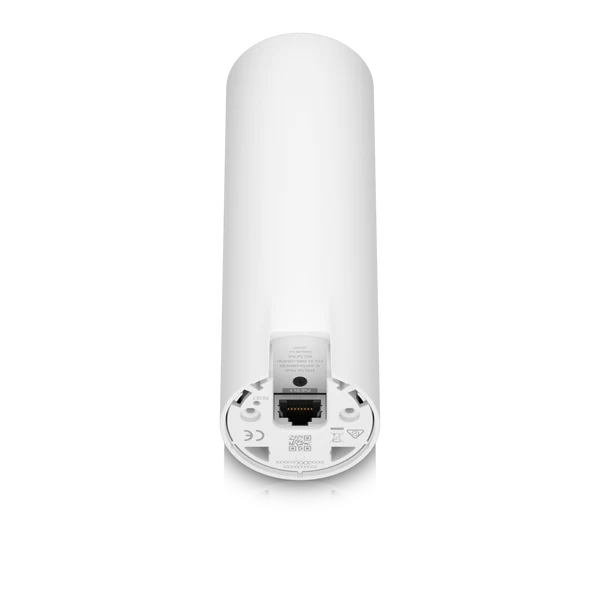

Ubiquiti UniFi U6 Mesh WiFi 6 Indoor/Outdoor Access Point (U6-MESH-EU)

The Ubiquiti UniFi U6 Mesh (U6-MESH-EU) is a high-performance, four-stream WiFi 6 access point designed to deliver flexible, best-in-class wireless meshing for premium residential and commercial networks. Engineered in a sleek, compact soda-can form factor, this versatile device achieves an aggregate radio throughput rate of up to 5.3 Gbps across its 5GHz (4x4 MU-MIMO and OFDMA) and 2.4GHz (2x2 MIMO) bands. Featuring an IPX5-rated weatherproof housing, the U6 Mesh can be placed discreetly on a desktop indoors or permanently deployed outside on a wall or pole to extend seamless, low-latency wireless coverage to gardens, outbuildings, or open-air venues.

Please Note: This is the official European/UK regional variant (U6-MESH-EU). While it is natively managed and adopted in seconds via your UniFi Network Controller application, please ensure the device is mounted upright (LED side up) when positioned outdoors to maintain its weatherproof seal.

Key Features

• High-Efficiency WiFi 6 Architecture: Delivers high-capacity data rates up to 4.8 Gbps on the 5GHz band (supporting full 160MHz channels) and 573.5 Mbps on the 2.4GHz band.

• IPX5 Weatherproof Rating: Housed in a durable, industrial-grade polycarbonate and aluminium chassis built to withstand rainwater, sub-zero winters, and heavy UV exposure.

• Sleek, Tactile Form Factor: The discrete, aesthetic design allows for seamless integration into high-end home decors, offices, or commercial reception spaces.

• Versatile Multi-Surface Mounting: Includes dedicated, out-of-the-box installation kits for desktop placement, flush wall mounting, or secure pole attachment.

• Centralised UniFi Management: Full plug-and-play adoption via the UniFi Network web platform or mobile app, offering advanced guest isolation, VLAN mapping, and granular bandwidth limits.

Technical Specifications

• Manufacturer Part Code (MPN): U6-MESH-EU

• Product Type: Indoor/Outdoor WiFi 6 Mesh Access Point

• Dimensions: ⌀48.5 x 159.5 mm

• Weight: 400 g

• Enclosure Material: Polycarbonate, Aluminium

• Networking Interface: 1 x 10/100/1000 Mbps RJ45 Port (Gigabit Ethernet)

• Management Interfaces: Ethernet, Bluetooth Low Energy (BLE)

• Wireless Standards: 802.11a/b/g, WiFi 4, WiFi 5, WiFi 6

• MIMO Configuration:

  • 5 GHz: 4 x 4 (DL/UL MU-MIMO)

  • 2.4 GHz: 2 x 2 (UL MU-MIMO)

• Antenna Gain Output: 5 GHz: 5 dBi | 2.4 GHz: 3 dBi

• Maximum Power Consumption: 11.4W

• Power Method: Active 802.3af Power over Ethernet (PoE)

• Supported Voltage Range: 44–57V DC

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSIDs Supported: Up to 8 per Radio

• Operating Temperature: -30°C to 60°C

• Certifications: CE, FCC, IC, NDAA Compliant

What's in the Box?

• 1 x Ubiquiti UniFi U6 Mesh Access Point

• 1 x Tabletop Stand / Base Mount

• 1 x Wall/Pole Mounting Bracket Kit

• 2 x Plastic Cable Ties (for Pole Mounting)

• 1 x 48V, 0.32A Gigabit PoE Injector (with European-to-UK power provisions)

• 1 x Screw and Wall Plug Pack
