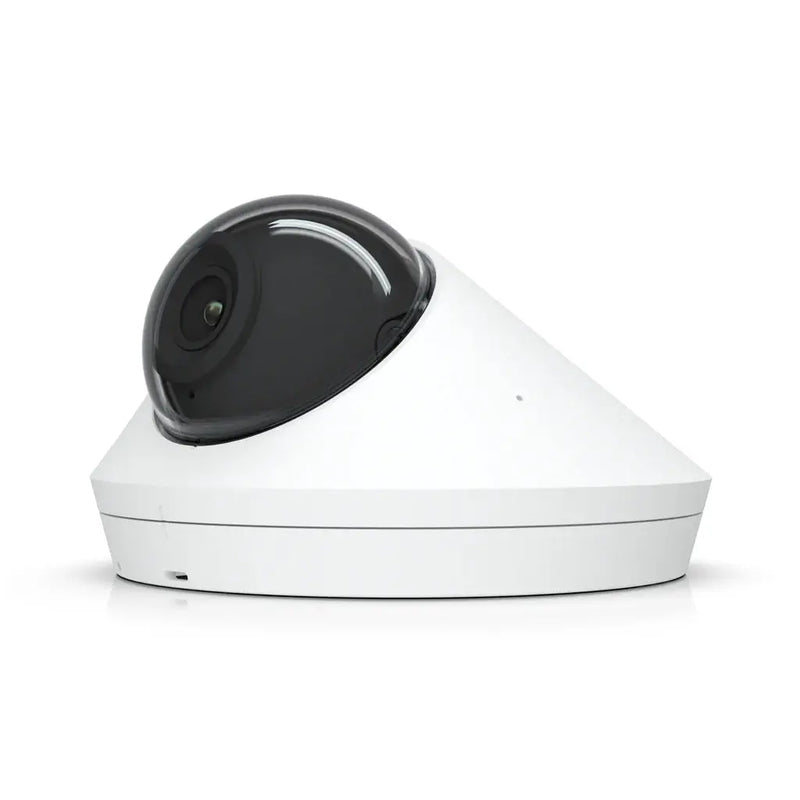

Ubiquiti UniFi Protect G5 Dome Camera (UVC-G5-DOME)

Product Overview The Ubiquiti UniFi Protect G5 Dome Camera is a ceiling or wall-mounted security camera built to provide 2K high-definition video monitoring. Equipped with a 5MP sensor, it records crisp video at 30 frames per second, ensuring clear tracking of individuals and activity. The camera includes built-in infrared LEDs for night vision, a wide-angle lens for broad area coverage, and an integrated microphone and speaker setup for two-way audio communication. Its compact, vandal-resistant casing makes it suitable for indoor areas or protected outdoor locations like under-porch soffits.

Key Features

• Clear 2K HD Resolution: Uses a 5MP CMOS sensor to record video at a 2688 x 1512 resolution, providing reliable picture detail for identifying faces and objects.

• Wide-Angle Coverage: Outfitted with a wide lens that gives a 102.4-degree horizontal field of view, allowing a single camera to monitor large rooms or entry points.

• Vandal and Weather Resistance: Features an IK08 impact-rated dome cover to protect against physical tampering, combined with an IPX4 weatherproofing rating for damp or covered areas.

• Night Vision and Low-Light Recording: Uses integrated infrared illumination and an automatic IR cut filter to maintain clear visibility up to 10 metres in total darkness.

• Two-Way Audio System: Built with an on-board microphone and a speaker, enabling operators to listen in on the area or speak through the camera using the UniFi Protect software.

• PoE Connection: Uses standard Power over Ethernet to handle power delivery and local network data over one network cable.

Technical Specifications

• Manufacturer Part Code (MPN): UVC-G5-DOME

• Dimensions: Ø109.2 x 64.5 mm

• Weight: 390 g (with mount)

• Enclosure Materials: Aluminium alloy, polycarbonate, hard-coated dome

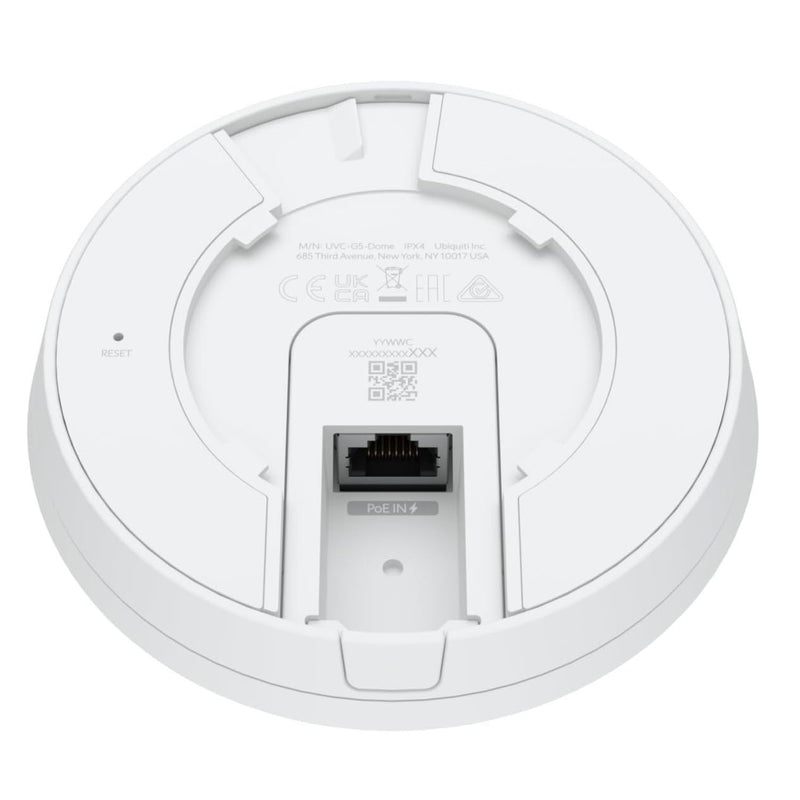

• Networking Interface: 1 x 10/100 MbE RJ45 port

• Sensor Type: 5MP CMOS

• View Angle: H: 102.4°, V: 71.4°, D: 134.3°

• Night Vision: IR LEDs up to 10 metres

• Power Method: PoE (37–57V DC)

• Max. Power Consumption: 5W

• Impact Resistance: IK08

What's in the Box?

• 1 x UniFi Protect G5 Dome Camera

• 1 x Ceiling/Wall Mounting Bracket

• 1 x Mounting Screws and Wall Plug Pack

• 1 x Quick Start Guide
