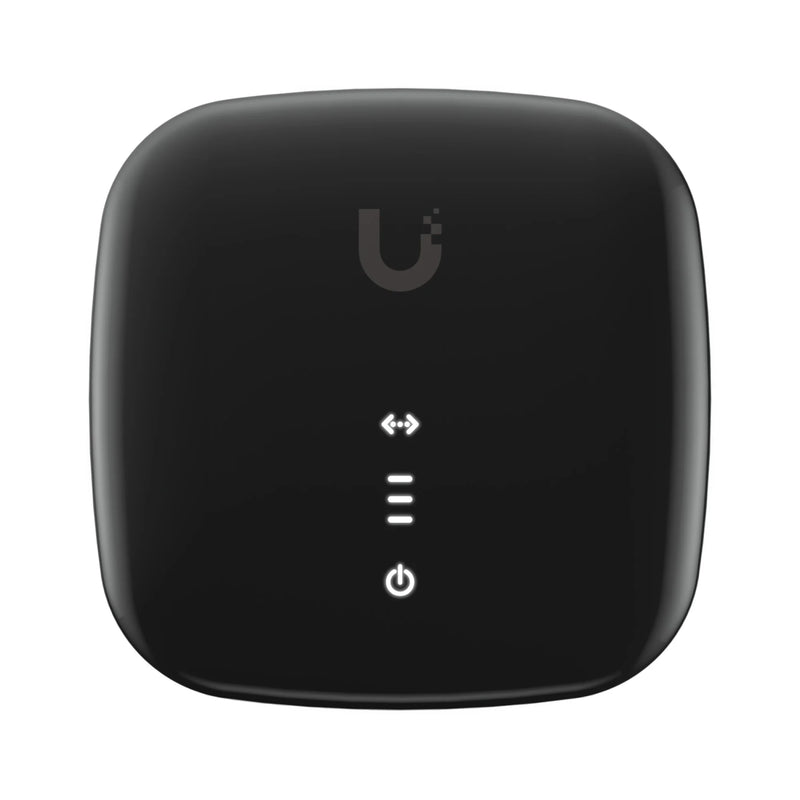

Ubiquiti UISP Fiber XGS (UISP-FIBER-XGS)
Do you need more information about this product?
Contact our friendly team and we'll be happy to help!
Product Overview The Ubiquiti UISP Fiber XGS is a compact optical network unit (ONU) built to deliver symmetrical 10 Gbps internet speeds for modern fiber-to-the-home (FTTH) and business broadband setups. It acts as a direct bridge between a provider's XGS-PON infrastructure and the local network hardware. By providing identical upload and download capacities, it accommodates data-heavy tasks like large file transfers, multi-stream 4K video surveillance, and high-density backup routines. The unit features a small footprint and connects straight into a local router or switch using its high-speed multi-gigabit copper port.
Key Features
-
Symmetrical 10 Gbps Speeds: Delivers a 9.95 Gbit/s line rate in both directions, balancing upload and download performance across the optical connection.
-

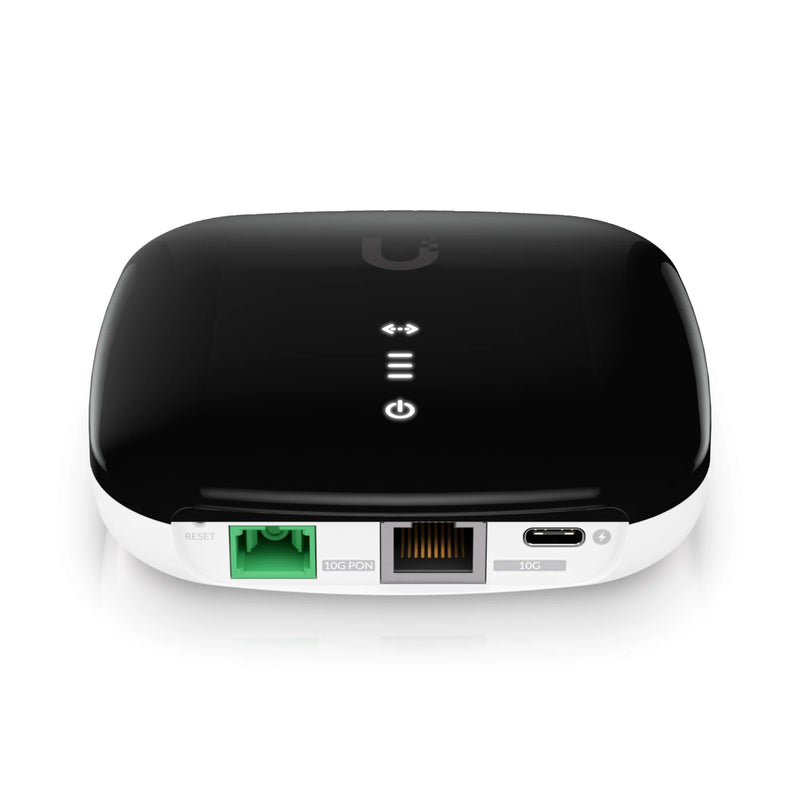

Multi-Gigabit LAN Connectivity: Equipped with a single auto-negotiating RJ45 LAN port that steps up across 100M, 1G, 2.5G, 5G, and 10G speeds to match the host hardware.
-
Long-Distance Physical Reach: Maintains stable data transmission over single-mode fiber infrastructure up to distances of 20 kilometres from the provider's central terminal.
-
On-Device Signal Diagnostics: Features integrated LED status indicators that provide real-time visual feedback on power, local network activity, and optical signal strength.
-
Centralised ISP Management: Pairs with the Ubiquiti ISP (UISP) platform, allowing network operators to handle firmware updates, configuration, and link monitoring from a single interface.
Technical Specifications
-
Manufacturer Part Code (MPN): UISP-FIBER-XGS
-
Dimensions: 100 x 100 x 27 mm
-
Weight: 220 g
-
Enclosure Material: UV-stabilised polycarbonate
-
WAN Interface: 1 x SC/APC, ITU-G.9807 XGSPON port
-
LAN Interface: 1 x 10GbE RJ45 port
-
Processor & Memory: 256 MB DDR system memory with 32 MB NOR flash
-
Power Method: 5V DC, 3A via USB-C input
-
Max. Power Consumption: 8W
-
Operating Temperature: -15 to 45°C
What's in the Box?
-
1 x Ubiquiti UISP Fiber XGS Device
-
1 x 5V DC, 3A USB-C Power Adapter
-
1 x Wall Mount Bracket & Wall Plug Kit
