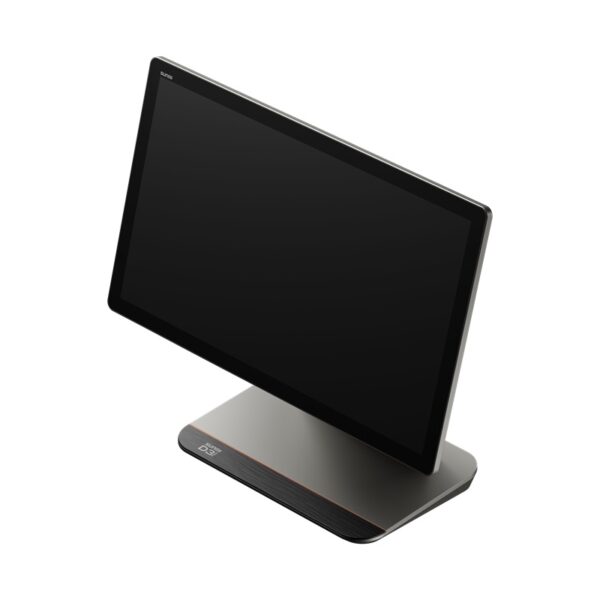

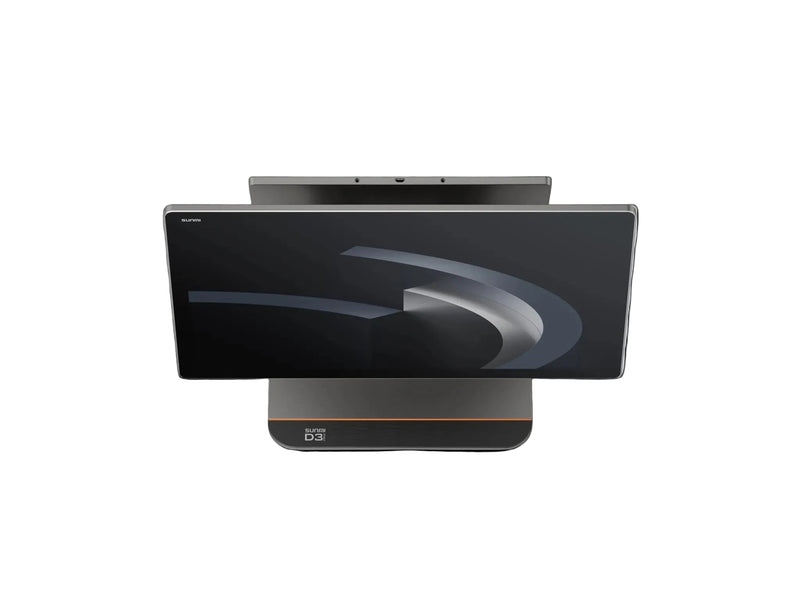

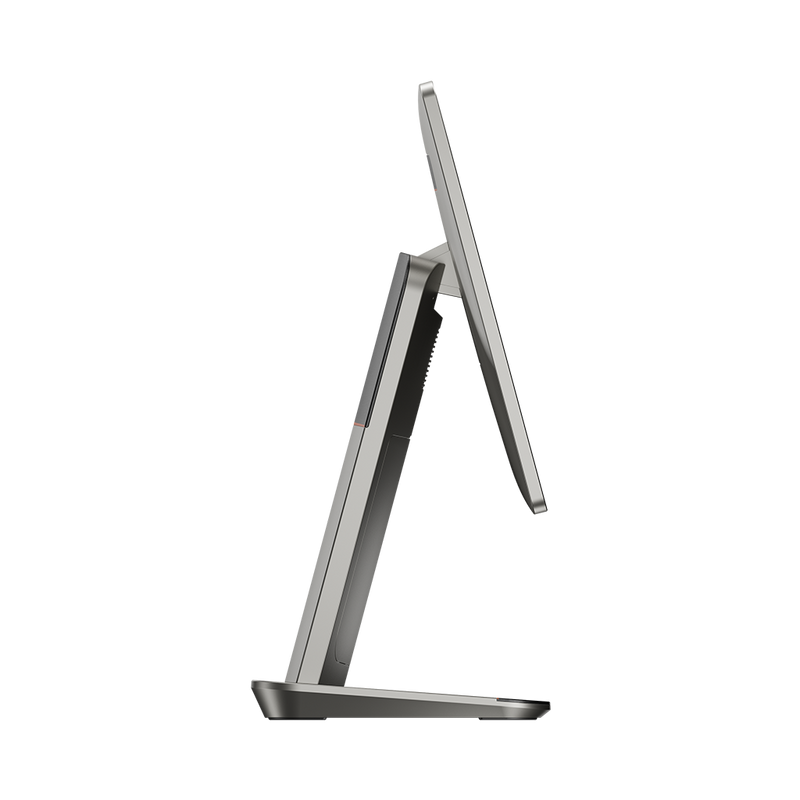

The SUNMI D3 Pro is an enterprise-grade Android point-of-sale terminal built with a premium aluminium alloy casing. Designed for high-volume retail, hospitality, and checkout environments, it features a thin-bezel 15.6-inch Full-HD main display delivering sharp visibility. Driven by a 2.4GHz Qualcomm Snapdragon Hexa-Core processor, this hardware handles resource-heavy, multi-application software workflows without lag or slowdown during peak trading hours.

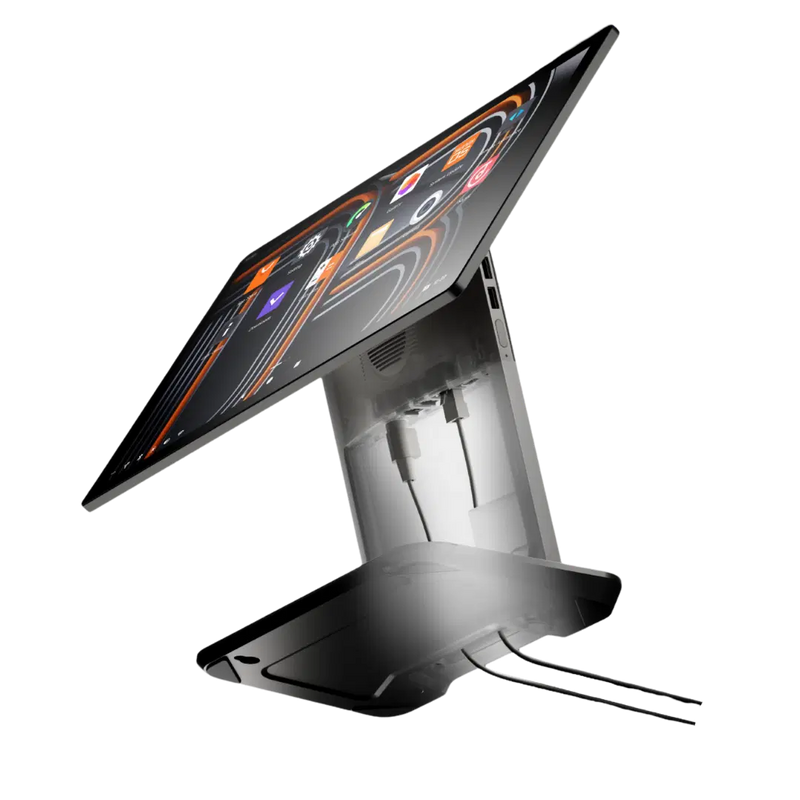

Every unit includes a built-in cable management stand to fully conceal wiring, a 3W high-output speaker, a built-in 1D/2D code scanner for quick loyalty or voucher scans, and a 10-point capacitive multi-touch interface.

Exact Manufacturer Part Codes & Variants

This breakdown details the hardware configurations, regional power supply units, and Google Enterprise certifications:

Key Differences: GMS-EDLA vs Standard OS

• GMS-EDLA Models (P01270002 / P01270004): These models integrate Google Mobile Services and Enhanced Device Lifecycle Assurances. They feature native, secure access to the Google Play Store, automated background security patches, Android Enterprise Management tools, and immediate data encryption compliance.

• Standard Model (P01270001): This variant runs directly on SUNMI OS 4.0 (built on Android 13) without native Google Play integration. It relies instead on the SUNMI App Store for remote, centralized private app deployments managed via your MDM console.

Technical Performance Specifications

1. Core Processing Power & Memory

• Processor: Qualcomm Snapdragon Hexa-Core (6 Cores, clocked up to 2.4GHz).

• RAM: 4GB high-speed memory.

• Flash Storage (ROM): 64GB on-board storage.

• Storage Expansion: Dedicated MicroSD (TF) card slot supporting up to 1TB for local media, pricing databases, and transaction logs.

2. Physical Dimensions & Layout

• Chassis Dimensions: 380 mm (Length) × 195 mm (Width) × 310 mm (Height).

• Total Desktop Weight: 4.5 kg.

• Environmental Tolerances: Operational threshold between 0°C to 40°C; safe storage threshold from -20°C to 60°C.

3. Comprehensive Input/Output (I/O) Map

The base and display casing feature an exhaustive layout of legacy and modern ports to connect all your till peripherals:

• 1 x USB Type-A 3.0 (For high-speed peripheral data transfer).

• 2 x USB Type-A 2.0 (For barcode scanners, external printers, or physical keyboards).

• 1 x USB Type-C 2.0 (Used for secondary media configurations).

• 1 x RJ11 Serial Port (For direct connection to serial weight scales or line displays).

• 1 x RJ12 Cash Drawer Port (Standard 24V drawer kickout).

• 1 x RJ45 Gigabit LAN Port (1000Mbps hardwired Ethernet interface for stable till networking).

• 1 x 3.5mm Audio Jack & 1 x Micro-USB Debug Port.

4. Network & Wireless Infrastructure

• Wi-Fi: Dual-Band 2.4GHz & 5GHz networks running on IEEE 802.11 a/b/g/n/ac protocols.

• Bluetooth: Version 5.0 with Bluetooth Low Energy (BLE) support for wireless card readers and proximity beacons.

Expandable Modules & Accessories

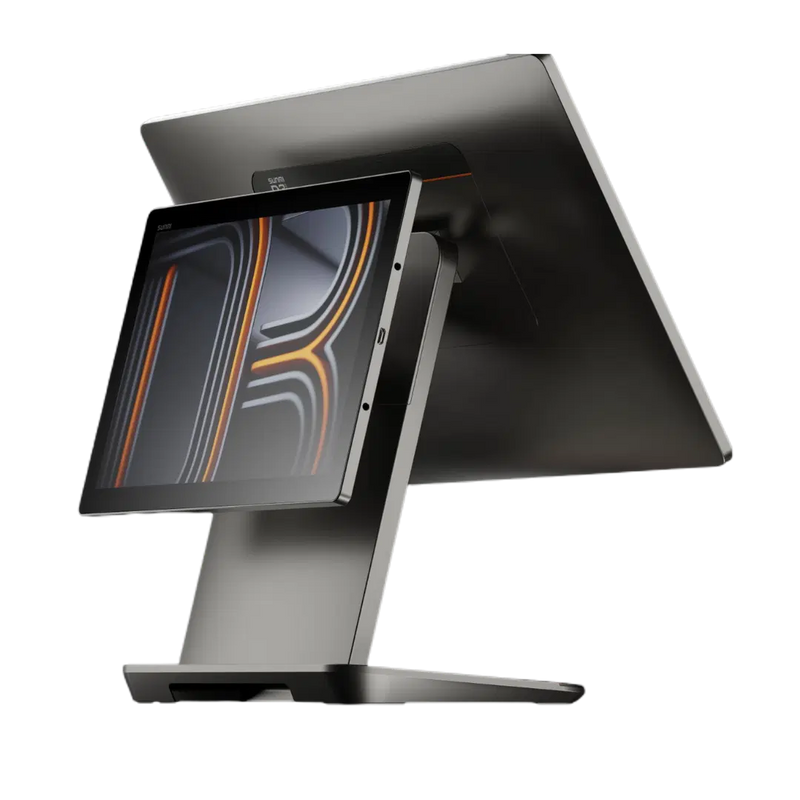

10.1" External Customer-Facing Display

• Manufacturer Part #: C02020005

• Display Properties: Crisp HD (1280 × 800) capacitive multi-touch panel.

• Integration: Connects via a single hidden USB cable to deliver customer promotions, digital receipts, and loyalty prompt interfaces.

• Physical Footprint: Adds exactly 0.88 kg to the terminal assembly.

• NFC Support: Includes built-in Tap-on-Glass technology allowing the secondary display to act as a direct SoftPOS contactless payment point.
