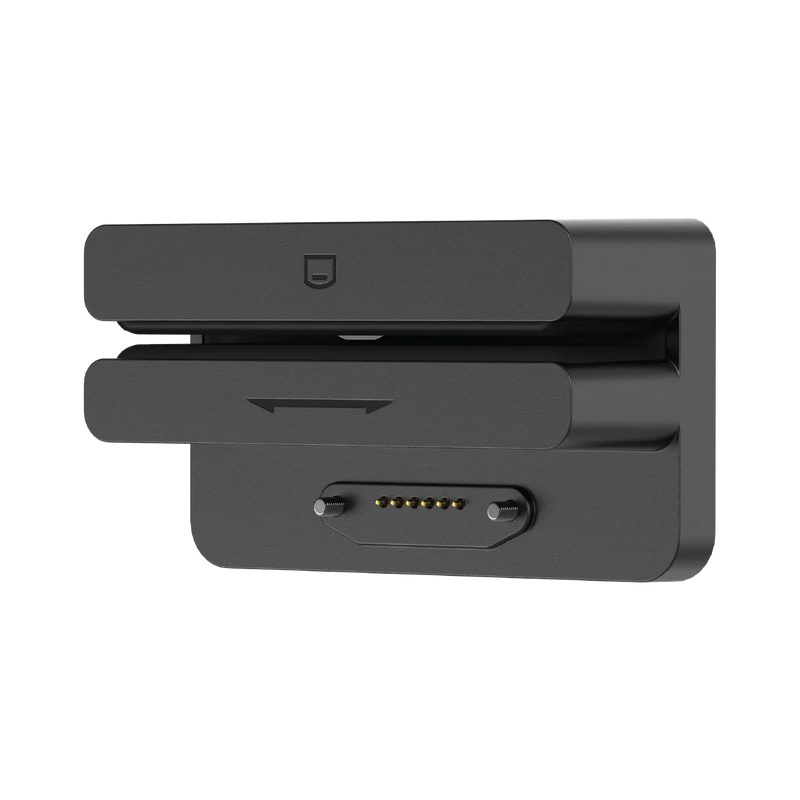

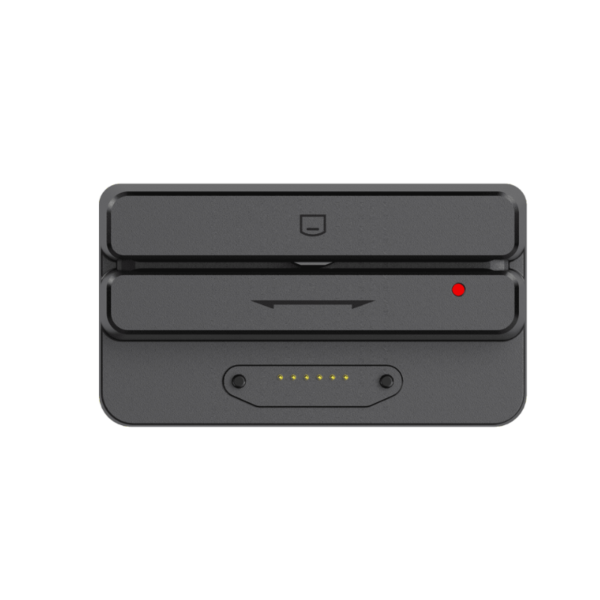

iMin Crane 1 MSR Reader – Integrated Magnetic Stripe Module

The iMin Crane 1 MSR Reader is a high-performance peripheral designed to integrate seamlessly with the Crane 1 large-format displays (15.6" to 32"). In the UK market, while EMV (Chip & Pin) is the standard for payments, the MSR remains a critical tool for reading loyalty cards, staff ID badges, and membership cards.

Engineered to match the industrial aesthetic of the Crane 1 series, this reader mounts directly to the side of the display, maintaining a clean, professional appearance without the need for external USB cables or bulky standalone readers.

Key Features & Professional Benefits

• Side-Mount Integration: Designed to bolt directly onto the edge of the Crane 1 display. It creates a unified, "built-in" look that prevents the peripheral from being moved or damaged in busy environments.

• Triple-Track Reading: Capable of reading Tracks 1, 2, and 3 magnetic stripe data, providing full compatibility with staff login cards, gift cards, and international loyalty schemes.

• Internal Connectivity: Connects via a dedicated internal port on the Crane 1 display, ensuring that no external USB ports are wasted and no loose cables are visible to the customer.

• High-Durability Head: Rated for over 500,000 swipes, this reader is built for the high-frequency use typical of UK hospitality venues where staff swipe in for every order.

• Bi-Directional Swiping: Allows cards to be swiped in either direction, improving transaction speed and reducing user error at the point of sale.

Why the MSR Reader is Essential for UK Hospitality & Retail

While customer payments have moved to contactless, the internal operation of a UK business still relies heavily on magnetic stripes. Whether it's a waiter swiping their "Server Card" to access the EPoS system or a customer using a gym membership card, the iMin MSR Reader provides a robust, professional way to handle these interactions without cluttering the desk with third-party peripherals.

Technical Data

• Interface: Proprietary iMin Side-Mount Connector.

• Supported Standards: ISO 7811, ANSI, AAMVA.

• Swipe Speed: 10cm/sec to 140cm/sec.

• Finish: Matte Charcoal (Matches Crane 1 Alloy Housing).

• Indicator: Integrated LED for successful read confirmation.

What’s in the Box?

• 1 x iMin Crane 1 MSR Reader Module

• 1 x Protective Connector Cover

• 1 x Mounting Screw Kit

• Installation Instructions

Compatibility Note

This module is compatible with the Android 13 Crane 1 series (I23D01, I23D02, I23D03, I23D04). It can be mounted on either the left or right side of the screen depending on your countertop orientation and staff preference.
